Implementation of middle-level API to draw text. More...

#include <string.h>
#include "nbgl_front.h"
#include "nbgl_draw.h"
#include "nbgl_fonts.h"
#include "nbgl_debug.h"
#include "nbgl_side.h"
#include "os_pic.h"
#include "os_utils.h"

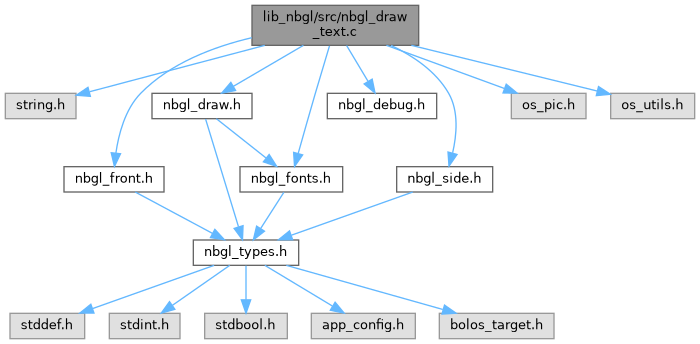

Include dependency graph for nbgl_draw_text.c:

Go to the source code of this file.

Classes
struct	rle_context_t

Macros
#define	MAX_FONT_HEIGHT 54

#define	AVERAGE_CHAR_WIDTH 40

#define	STATIC static

#define	COMBINED_HEIGHT 9

#define	MAX_RLE_COPY_PIXELS 5

#define	RLE_CMD_COPY_2 0x00

#define	RLE_CMD_COPY_3 0x01

#define	RLE_CMD_COPY_4 0x02

#define	RLE_CMD_COPY_5 0x03

#define	RLE_CMD_FILL_3 0x04

#define	RLE_CMD_FILL_2 0x05

#define	RLE_CMD_2PATTERN_INDEXED_B2W 0x06

#define	RLE_CMD_2PATTERN_INDEXED_W2B 0x07

#define	RLE_CMD_1PATTERN_B2W 0x08

#define	RLE_CMD_1PATTERN_W2B 0x09

#define	RLE_CMD_2PATTERN_B2W 0x0A

#define	RLE_CMD_2PATTERN_W2B 0x0B

#define	RLE_CMD_FILL_BLACK 0x0C

#define	RLE_CMD_FILL_1 0x0D

#define	RLE_CMD_FILL_WHITE 0x0E

#define	RLE_CMD_FILL_WHITE_16 0x0F

Functions
STATIC void	nbgl_draw4BPPImageRle (nbgl_area_t area, const uint8_t buffer, uint32_t buffer_len, const uint8_t patterns, nbgl_area_t buf_area, uint8_t *dst, uint8_t nb_skipped_bytes)
	Uncompress a 4BPP RLE-encoded glyph and draw it in a RAM buffer (we handle transparency, meaning when resulting pixel is 0xF we don't store it)

STATIC void	update_char_info (character_info_t char_info, const uint8_t text, uint16_t textLen, nbgl_unicode_ctx_t unicode_ctx, const nbgl_font_t font)

nbgl_font_id_e	nbgl_drawText (const nbgl_area_t area, const char text, uint16_t textLen, nbgl_font_id_e fontId, color_t fontColor)
	This function draws the given single-line text, with the given parameters.

Detailed Description

Implementation of middle-level API to draw text.

Definition in file nbgl_draw_text.c.

Macro Definition Documentation

◆ AVERAGE_CHAR_WIDTH

#define AVERAGE_CHAR_WIDTH 40

Definition at line 28 of file nbgl_draw_text.c.

◆ COMBINED_HEIGHT

#define COMBINED_HEIGHT 9

Definition at line 41 of file nbgl_draw_text.c.

◆ MAX_FONT_HEIGHT

#define MAX_FONT_HEIGHT 54

Definition at line 27 of file nbgl_draw_text.c.

◆ MAX_RLE_COPY_PIXELS

#define MAX_RLE_COPY_PIXELS 5

Definition at line 44 of file nbgl_draw_text.c.

◆ RLE_CMD_1PATTERN_B2W

#define RLE_CMD_1PATTERN_B2W 0x08

Definition at line 55 of file nbgl_draw_text.c.

◆ RLE_CMD_1PATTERN_W2B

#define RLE_CMD_1PATTERN_W2B 0x09

Definition at line 56 of file nbgl_draw_text.c.

◆ RLE_CMD_2PATTERN_B2W

#define RLE_CMD_2PATTERN_B2W 0x0A

Definition at line 57 of file nbgl_draw_text.c.

◆ RLE_CMD_2PATTERN_INDEXED_B2W

#define RLE_CMD_2PATTERN_INDEXED_B2W 0x06

Definition at line 53 of file nbgl_draw_text.c.

◆ RLE_CMD_2PATTERN_INDEXED_W2B

#define RLE_CMD_2PATTERN_INDEXED_W2B 0x07

Definition at line 54 of file nbgl_draw_text.c.

◆ RLE_CMD_2PATTERN_W2B

#define RLE_CMD_2PATTERN_W2B 0x0B

Definition at line 58 of file nbgl_draw_text.c.

◆ RLE_CMD_COPY_2

#define RLE_CMD_COPY_2 0x00

Definition at line 47 of file nbgl_draw_text.c.

◆ RLE_CMD_COPY_3

#define RLE_CMD_COPY_3 0x01

Definition at line 48 of file nbgl_draw_text.c.

◆ RLE_CMD_COPY_4

#define RLE_CMD_COPY_4 0x02

Definition at line 49 of file nbgl_draw_text.c.

◆ RLE_CMD_COPY_5

#define RLE_CMD_COPY_5 0x03

Definition at line 50 of file nbgl_draw_text.c.

◆ RLE_CMD_FILL_1

#define RLE_CMD_FILL_1 0x0D

Definition at line 60 of file nbgl_draw_text.c.

◆ RLE_CMD_FILL_2

#define RLE_CMD_FILL_2 0x05

Definition at line 52 of file nbgl_draw_text.c.

◆ RLE_CMD_FILL_3

#define RLE_CMD_FILL_3 0x04

Definition at line 51 of file nbgl_draw_text.c.

◆ RLE_CMD_FILL_BLACK

#define RLE_CMD_FILL_BLACK 0x0C

Definition at line 59 of file nbgl_draw_text.c.

◆ RLE_CMD_FILL_WHITE

#define RLE_CMD_FILL_WHITE 0x0E

Definition at line 61 of file nbgl_draw_text.c.

◆ RLE_CMD_FILL_WHITE_16

#define RLE_CMD_FILL_WHITE_16 0x0F

Definition at line 62 of file nbgl_draw_text.c.

◆ STATIC

#define STATIC static

Definition at line 35 of file nbgl_draw_text.c.

Function Documentation

◆ nbgl_draw4BPPImageRle()

STATIC void nbgl_draw4BPPImageRle	(	nbgl_area_t *	area,
		const uint8_t *	buffer,
		uint32_t	buffer_len,
		const uint8_t *	patterns,
		nbgl_area_t *	buf_area,
		uint8_t *	dst,
		uint8_t	nb_skipped_bytes
	)

Uncompress a 4BPP RLE-encoded glyph and draw it in a RAM buffer (we handle transparency, meaning when resulting pixel is 0xF we don't store it)

4BPP RLE Decoder - The provided bytes contains:

  CMD + DATA:

  1000 + VVVV => Simple Pattern Black to White: 0x0, VVVV, 0xF
  1001 + VVVV => Simple Pattern White to Black: 0xF, VVVV, 0x0
  1010 + VVVV + WWWW => Double Pattern Black to White: 0x0, VVVV, WWWW, 0xF
  1011 + VVVV + WWWW => Double Pattern White to Black: 0xF, VVVV, WWWW, 0x0
  111R + RRRR => FILL White (max=32)
  1100 + RRRR => FILL Black (max=16)
  1101 + VVVV => Fill Value x 1

  00RR + VVVV + WWWW + XXXX + YYYY + ZZZZ => COPY Quartets
 - RR is repeat count - 2 of quartets (max=2+3 => 5 quartets)
  - VVVV: value of 1st 4BPP pixel
  - WWWW: value of 2nd 4BPP pixel
  - XXXX: value of 3rd 4BPP pixel
  - YYYY: value of 4th 4BPP pixel
  - ZZZZ: value of 5th 4BPP pixel

  0100 + VVVV + RRRR => FILL Value x Repeat+3 (max=18)
  0101 + VVVV => FILL Value x 2
  0110 + IIII => Double Pattern Indexed Black to White: 0x0, Val1, val2, 0xF
  0111 + IIII => Double Pattern Indexed White to Black: 0xF, Val2, Val1, 0x0

Parameters

area	area information about where to display the text
buffer	buffer of RLE-encoded data
buffer_len	length of buffer
buf_area	of the RAM buffer
dst	RAM buffer on which the glyph will be drawn
nb_skipped_bytes	number of bytes that was cropped

Definition at line 443 of file nbgl_draw_text.c.

◆ nbgl_drawText()

nbgl_font_id_e nbgl_drawText	(	const nbgl_area_t *	area,
		const char *	text,
		uint16_t	textLen,
		nbgl_font_id_e	fontId,
		color_t	fontColor
	)

This function draws the given single-line text, with the given parameters.
