API of the Advanced BOLOS Graphical Library, for predefined layouts. More...

#include "nbgl_obj.h"
#include "nbgl_screen.h"
#include "nbgl_types.h"
#include "nbgl_content.h"

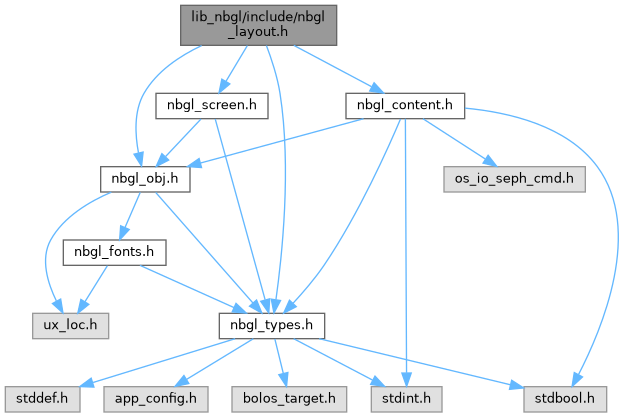

Include dependency graph for nbgl_layout.h:

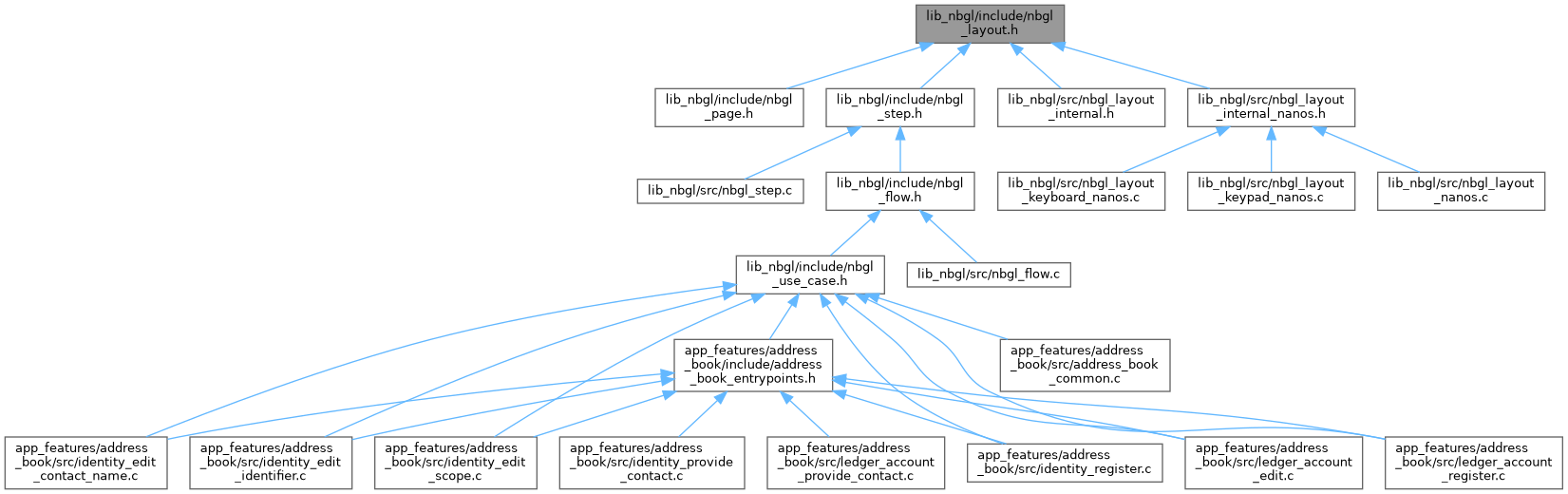

This graph shows which files directly or indirectly include this file:

Classes
struct	nbgl_layoutNavigationBar_t
	This structure contains info to build a navigation bar at the bottom of the screen. More...

struct	nbgl_layoutNavigation_t
	This structure contains info to build a navigation bar at the bottom of the screen. More...

struct	nbgl_layoutDescription_s
	Structure containing all information when creating a layout. This structure must be passed as argument to nbgl_layoutGet. More...

struct	nbgl_layoutBar_t
	This structure contains info to build a clickable "bar" with a text and an icon. More...

struct	nbgl_layoutTextContent_t
	This structure contains info for Text content, to be set with nbgl_layoutAddTextContent(). More...

struct	nbgl_layoutMenuList_t
	This structure contains a list of names to build a menu list on Nanos, with for each item a description (names array) More...

struct	nbgl_layoutLeftContent_t
	This structure contains info to build a left content area. More...

struct	nbgl_layoutSuggestionButtons_t
	This structure contains info to build suggestion buttons. More...

struct	nbgl_layoutConfirmationButton_t
	This structure contains info to build a confirmation button. More...

struct	nbgl_layoutKeyboardContent_t
	This structure contains info to build a keyboard content (controls that are linked to keyboard) More...

struct	nbgl_layoutButton_t
	This structure contains info to build a single button. More...

struct	nbgl_layoutProgressBar_t
	This structure contains info to build a progress bar with info. The progress bar itself is 120px width * 12px height. More...

struct	nbgl_layoutKbd_t
	This structure contains info to build a keyboard with nbgl_layoutAddKeyboard() More...

Macros
#define	NBGL_NO_TUNE NB_TUNES

#define	NBGL_NO_PROGRESS_INDICATOR 0xFF
	To be used when a control token shall not be used.

#define	NBGL_INVALID_TOKEN 0xFF

#define	NB_MAX_SUGGESTION_BUTTONS 8

#define	AVAILABLE_WIDTH (SCREEN_WIDTH - 2 * 7)

#define	NB_MAX_LINES 4

#define	SPINNER_FIXED 0xFF
	position to use for a "fixed" spinner

#define	NB_MAX_DESCRIPTIONS 3
	max number of descriptions in nbgl_layoutTextContent_t

Typedefs
typedef void *	nbgl_layout_t
	type shared externally

typedef void(*	nbgl_layoutTouchCallback_t) (int token, uint8_t index)
	prototype of function to be called when an object is touched

typedef void(*	nbgl_layoutButtonCallback_t) (nbgl_layout_t *layout, nbgl_buttonEvent_t event)
	prototype of function to be called when buttons are touched on a screen

typedef struct nbgl_layoutDescription_s	nbgl_layoutDescription_t
	Structure containing all information when creating a layout. This structure must be passed as argument to nbgl_layoutGet.

typedef nbgl_contentSwitch_t	nbgl_layoutSwitch_t
	Deprecated, kept for retro compatibility.

typedef nbgl_contentRadioChoice_t	nbgl_layoutRadioChoice_t
	Deprecated, kept for retro compatibility.

typedef const char (	nbgl_menuListCallback_t) (uint8_t choiceIndex)
	prototype of menu list item retrieval callback

typedef nbgl_contentTagValue_t	nbgl_layoutTagValue_t
	Deprecated, kept for retro compatibility.

typedef nbgl_contentTagValueList_t	nbgl_layoutTagValueList_t
	Deprecated, kept for retro compatibility.

typedef nbgl_contentCenteredInfo_t	nbgl_layoutCenteredInfo_t
	Deprecated, kept for retro compatibility.

Enumerations
enum	nbgl_layoutNavDirection_t { HORIZONTAL_NAV , VERTICAL_NAV }
	possible directions for Navigation arrows More...

enum	nbgl_layoutNavIndication_t { NO_ARROWS = 0 , LEFT_ARROW , RIGHT_ARROW }
	possible styles for Navigation arrows (it's a bit field) More...

enum	nbgl_layoutKeyboardContentType_t { KEYBOARD_WITH_SUGGESTIONS , KEYBOARD_WITH_BUTTON , NB_KEYBOARD_CONTENT_TYPES }
	The different types of keyboard contents. More...

enum	nbgl_layoutButtonStyle_t { WHITE_BACKGROUND = 0 }
	The different styles for a button. More...

Functions
nbgl_layout_t *	nbgl_layoutGet (const nbgl_layoutDescription_t *description)
	returns a layout of the given type. The layout is reset

int	nbgl_layoutAddCenteredInfo (nbgl_layout_t layout, const nbgl_layoutCenteredInfo_t info)
	Creates an area on the center of the main panel, with a possible icon/image, a possible text in black under it, and a possible text in gray under it.

int	nbgl_layoutAddContentCenter (nbgl_layout_t layout, const nbgl_contentCenter_t info)

int	nbgl_layoutAddLeftContent (nbgl_layout_t layout, const nbgl_layoutLeftContent_t info)

int	nbgl_layoutAddText (nbgl_layout_t layout, const char text, const char *subText, nbgl_contentCenteredInfoStyle_t style)
	Creates an area with given text and sub text, using the given style.

int	nbgl_layoutAddProgressBar (nbgl_layout_t layout, const nbgl_layoutProgressBar_t barLayout)
	Creates an area in main panel to display a progress bar, with a title text and a description under the progress.

int	nbgl_layoutAddNavigation (nbgl_layout_t layout, nbgl_layoutNavigation_t info)
	Creates navigation arrows on side(s) of the screen.

int	nbgl_layoutAddMenuList (nbgl_layout_t layout, nbgl_layoutMenuList_t list)
	Creates a menu list (only for nanos) with the given parameters. The navigation (and selection) must be handled by the caller.

int	nbgl_layoutAddButton (nbgl_layout_t layout, const nbgl_layoutButton_t buttonInfo)
	Creates an area in main panel to display a button, with the given style.

int	nbgl_layoutAddSwitch (nbgl_layout_t layout, const nbgl_layoutSwitch_t switchLayout)
	Creates an area in main panel to display a switch.

int	nbgl_layoutAddKeyboard (nbgl_layout_t layout, const nbgl_layoutKbd_t kbdInfo)
	Creates a keyboard on bottom of the screen, with the given configuration.

int	nbgl_layoutUpdateKeyboard (nbgl_layout_t *layout, uint8_t index, uint32_t keyMask)
	Updates an existing keyboard on bottom of the screen, with the given configuration.

int	nbgl_layoutAddEnteredText (nbgl_layout_t layout, const char text, bool lettersOnly)
	Adds a "text entry" area under the previously entered object. The max number of really displayable characters is 8, even if there are 9 placeholders (_) If longer than 8 chars, the first ones are replaced by a '..' The 9th placeholder is never filled.

int	nbgl_layoutAddEnteredTextAdvanced (nbgl_layout_t layout, const char text, bool lettersOnly, bool obfuscated)
	Adds a "text entry" area under the previously entered object. The max number of really displayable characters is 8, even if there are 9 placeholders (_) If longer than 8 chars, the first ones are replaced by a '..' The 9th placeholder is never filled.

int	nbgl_layoutUpdateEnteredText (nbgl_layout_t layout, uint8_t index, const char text)
	Updates an existing "text entry" area, created with nbgl_layoutAddEnteredText()

int	nbgl_layoutAddKeypad (nbgl_layout_t layout, keyboardCallback_t callback, const char text, bool shuffled)
	Adds a keypad on bottom of the screen, with the associated callback.

int	nbgl_layoutUpdateKeypad (nbgl_layout_t *layout, uint8_t index, bool enableValidate, bool enableBackspace)
	Updates an existing keypad on bottom of the screen, with the given configuration.

int	nbgl_layoutAddHiddenDigits (nbgl_layout_t *layout, uint8_t nbDigits)
	Adds a placeholder for hidden digits on top of a keypad, to represent the entered digits, as full circles.

int	nbgl_layoutUpdateHiddenDigits (nbgl_layout_t *layout, uint8_t index, uint8_t nbActive)
	Updates an existing set of hidden digits, with the given configuration.

int	nbgl_layoutAddKeypadContent (nbgl_layout_t layout, bool hidden, uint8_t nbDigits, const char text)
	Adds an area with a title and a placeholder for hidden digits on top of a keypad, to represent the entered digits as small discs.

int	nbgl_layoutUpdateKeypadContent (nbgl_layout_t layout, bool hidden, uint8_t nbActiveDigits, const char text)
	Updates an existing set of hidden digits, with the given configuration.

int	nbgl_layoutDraw (nbgl_layout_t *layout)
	Applies given layout. The screen will be redrawn.

int	nbgl_layoutRelease (nbgl_layout_t *layout)
	Release the layout obtained with nbgl_layoutGet()

Detailed Description

API of the Advanced BOLOS Graphical Library, for predefined layouts.

Definition in file nbgl_layout.h.

Macro Definition Documentation

◆ AVAILABLE_WIDTH

#define AVAILABLE_WIDTH (SCREEN_WIDTH - 2 * 7)

Definition at line 143 of file nbgl_layout.h.

◆ NB_MAX_DESCRIPTIONS

#define NB_MAX_DESCRIPTIONS 3

max number of descriptions in nbgl_layoutTextContent_t

Definition at line 151 of file nbgl_layout.h.

◆ NB_MAX_LINES

#define NB_MAX_LINES 4

Definition at line 145 of file nbgl_layout.h.

◆ NB_MAX_SUGGESTION_BUTTONS

#define NB_MAX_SUGGESTION_BUTTONS 8

Definition at line 141 of file nbgl_layout.h.

◆ NBGL_INVALID_TOKEN

#define NBGL_INVALID_TOKEN 0xFF

Definition at line 30 of file nbgl_layout.h.

◆ NBGL_NO_PROGRESS_INDICATOR

#define NBGL_NO_PROGRESS_INDICATOR 0xFF

To be used when a control token shall not be used.

Definition at line 29 of file nbgl_layout.h.

◆ NBGL_NO_TUNE

#define NBGL_NO_TUNE NB_TUNES

Definition at line 26 of file nbgl_layout.h.

◆ SPINNER_FIXED

#define SPINNER_FIXED 0xFF

position to use for a "fixed" spinner

Definition at line 149 of file nbgl_layout.h.

Typedef Documentation

◆ nbgl_layout_t

typedef void* nbgl_layout_t

type shared externally

Definition at line 161 of file nbgl_layout.h.

◆ nbgl_layoutButtonCallback_t

typedef void(* nbgl_layoutButtonCallback_t) (nbgl_layout_t *layout, nbgl_buttonEvent_t event)

prototype of function to be called when buttons are touched on a screen

Parameters

layout	layout concerned by the event
event	type of button event

Definition at line 176 of file nbgl_layout.h.

◆ nbgl_layoutCenteredInfo_t

typedef nbgl_contentCenteredInfo_t nbgl_layoutCenteredInfo_t

Deprecated, kept for retro compatibility.

Definition at line 328 of file nbgl_layout.h.

◆ nbgl_layoutDescription_t

typedef struct nbgl_layoutDescription_s nbgl_layoutDescription_t

Structure containing all information when creating a layout. This structure must be passed as argument to nbgl_layoutGet.

Note: It shall not be used

◆ nbgl_layoutRadioChoice_t

typedef nbgl_contentRadioChoice_t nbgl_layoutRadioChoice_t

Deprecated, kept for retro compatibility.

Definition at line 294 of file nbgl_layout.h.

◆ nbgl_layoutSwitch_t

typedef nbgl_contentSwitch_t nbgl_layoutSwitch_t

Deprecated, kept for retro compatibility.

Definition at line 289 of file nbgl_layout.h.

◆ nbgl_layoutTagValue_t

typedef nbgl_contentTagValue_t nbgl_layoutTagValue_t

Deprecated, kept for retro compatibility.

Definition at line 317 of file nbgl_layout.h.

◆ nbgl_layoutTagValueList_t

typedef nbgl_contentTagValueList_t nbgl_layoutTagValueList_t

Deprecated, kept for retro compatibility.

Definition at line 322 of file nbgl_layout.h.

◆ nbgl_layoutTouchCallback_t

typedef void(* nbgl_layoutTouchCallback_t) (int token, uint8_t index)

prototype of function to be called when an object is touched

Parameters

token	integer passed when registering callback
index	when the object touched is a list of radio buttons, gives the index of the activated button

Definition at line 169 of file nbgl_layout.h.

◆ nbgl_menuListCallback_t

typedef const char *(* nbgl_menuListCallback_t) (uint8_t choiceIndex)

prototype of menu list item retrieval callback

Parameters

choiceIndex index of the menu list item to retrieve (from 0 (to nbChoices-1))

Returns: a pointer on a string

Definition at line 301 of file nbgl_layout.h.

Enumeration Type Documentation

◆ nbgl_layoutButtonStyle_t

enum nbgl_layoutButtonStyle_t

The different styles for a button.

Enumerator
WHITE_BACKGROUND	rounded bordered button, with text/icon in black, on white background

Definition at line 632 of file nbgl_layout.h.

◆ nbgl_layoutKeyboardContentType_t

enum nbgl_layoutKeyboardContentType_t

The different types of keyboard contents.

Enumerator
KEYBOARD_WITH_SUGGESTIONS	text entry area + suggestion buttons
KEYBOARD_WITH_BUTTON	text entry area + confirmation button
NB_KEYBOARD_CONTENT_TYPES

Definition at line 345 of file nbgl_layout.h.

◆ nbgl_layoutNavDirection_t

enum nbgl_layoutNavDirection_t

possible directions for Navigation arrows

Enumerator
HORIZONTAL_NAV	'<' and '>' are displayed, to navigate between pages and steps
VERTICAL_NAV	'\/' and '/\' are displayed, to navigate in a list (vertical scrolling)

Definition at line 203 of file nbgl_layout.h.

◆ nbgl_layoutNavIndication_t

enum nbgl_layoutNavIndication_t

possible styles for Navigation arrows (it's a bit field)

Enumerator
NO_ARROWS
LEFT_ARROW	left arrow is used
RIGHT_ARROW	right arrow is used

Definition at line 212 of file nbgl_layout.h.

Function Documentation

◆ nbgl_layoutAddButton()

int nbgl_layoutAddButton	(	nbgl_layout_t *	layout,
		const nbgl_layoutButton_t *	buttonInfo
	)

Creates an area in main panel to display a button, with the given style.

Parameters

layout	the current layout
buttonInfo	structure giving the description of button

Returns: >= 0 if OK

Definition at line 652 of file nbgl_layout_nanos.c.

◆ nbgl_layoutAddCenteredInfo()

int nbgl_layoutAddCenteredInfo	(	nbgl_layout_t *	layout,
		const nbgl_layoutCenteredInfo_t *	info
	)

Creates an area on the center of the main panel, with a possible icon/image, a possible text in black under it, and a possible text in gray under it.

Parameters

layout	the current layout
info	structure giving the description of buttons (texts, icons, layout)

Returns: >= 0 if OK

Definition at line 457 of file nbgl_layout_nanos.c.

◆ nbgl_layoutAddContentCenter()

int nbgl_layoutAddContentCenter	(	nbgl_layout_t *	layout,
		const nbgl_contentCenter_t *	info
	)

◆ nbgl_layoutAddEnteredText()

int nbgl_layoutAddEnteredText	(	nbgl_layout_t *	layout,
		const char *	text,
		bool	lettersOnly
	)

Adds a "text entry" area under the previously entered object. The max number of really displayable characters is 8, even if there are 9 placeholders (_) If longer than 8 chars, the first ones are replaced by a '..' The 9th placeholder is never filled.

Parameters

layout	the current layout
text	string to display in the area
lettersOnly	if true, display 8 chars placeholders, otherwise 9

Returns: >= 0 if OK

Definition at line 197 of file nbgl_layout_keyboard_nanos.c.

◆ nbgl_layoutAddEnteredTextAdvanced()

int nbgl_layoutAddEnteredTextAdvanced	(	nbgl_layout_t *	layout,
		const char *	text,
		bool	lettersOnly,
		bool	obfuscated
	)

Adds a "text entry" area under the previously entered object. The max number of really displayable characters is 8, even if there are 9 placeholders (_) If longer than 8 chars, the first ones are replaced by a '..' The 9th placeholder is never filled.

Parameters

layout	the current layout
text	string to display in the area
lettersOnly	if true, display 8 chars placeholders, otherwise 9
obfuscated	if true, entered text is obfuscated

Returns: >= 0 if OK

Definition at line 151 of file nbgl_layout_keyboard_nanos.c.

◆ nbgl_layoutAddHiddenDigits()

int nbgl_layoutAddHiddenDigits	(	nbgl_layout_t *	layout,
		uint8_t	nbDigits
	)

Adds a placeholder for hidden digits on top of a keypad, to represent the entered digits, as full circles.

Note: It must be the last added object, after keypad. Vertical positions of title and hidden digits will be computed here

Parameters

layout	the current layout
nbDigits	number of digits to be displayed

Returns: the index of digits set, to use in nbgl_layoutUpdateHiddenDigits()

Definition at line 161 of file nbgl_layout_keypad_nanos.c.

◆ nbgl_layoutAddKeyboard()

int nbgl_layoutAddKeyboard	(	nbgl_layout_t *	layout,
		const nbgl_layoutKbd_t *	kbdInfo
	)

Creates a keyboard on bottom of the screen, with the given configuration.

Parameters

layout	the current layout
kbdInfo	configuration of the keyboard to draw (including the callback when touched)

Returns: the index of keyboard, to use in nbgl_layoutUpdateKeyboard()

Definition at line 51 of file nbgl_layout_keyboard_nanos.c.

◆ nbgl_layoutAddKeypad()

int nbgl_layoutAddKeypad	(	nbgl_layout_t *	layout,
		keyboardCallback_t	callback,
		const char *	text,
		bool	shuffled
	)

Adds a keypad on bottom of the screen, with the associated callback.

Note: Validate and Backspace keys are not enabled at start-up

Parameters

layout	the current layout
callback	function called when any of the key is touched
text	text to use as title for the keypad
shuffled	if set to true, digits are shuffled in keypad

Returns: the index of keypad in layout, to use in nbgl_layoutUpdateKeypad()

Definition at line 59 of file nbgl_layout_keypad_nanos.c.

◆ nbgl_layoutAddKeypadContent()

int nbgl_layoutAddKeypadContent	(	nbgl_layout_t *	layout,
		bool	hidden,
		uint8_t	nbDigits,
		const char *	text
	)

Adds an area with a title and a placeholder for hidden digits on top of a keypad, to represent the entered digits as small discs.

Note: It must be the only object added in the layout, after the keypad itself

Parameters

layout	the current layout
hidden	if set to true, digits appear as discs, otherwise as visible digits (given in text param)
nbDigits	number of digits to be displayed (only used if hidden is true)
text	only used if hidden is false

Returns: the height of this area, if no error, < 0 otherwise

Definition at line 196 of file nbgl_layout_keypad_nanos.c.

◆ nbgl_layoutAddLeftContent()

int nbgl_layoutAddLeftContent	(	nbgl_layout_t *	layout,
		const nbgl_layoutLeftContent_t *	info
	)

◆ nbgl_layoutAddMenuList()

int nbgl_layoutAddMenuList	(	nbgl_layout_t *	layout,
		nbgl_layoutMenuList_t *	list
	)

Creates a menu list (only for nanos) with the given parameters. The navigation (and selection) must be handled by the caller.

Parameters

layout	the current layout
list	structure giving the list of choices and the current selected one

Returns: >= 0 if OK

Definition at line 403 of file nbgl_layout_nanos.c.

◆ nbgl_layoutAddNavigation()

int nbgl_layoutAddNavigation	(	nbgl_layout_t *	layout,
		nbgl_layoutNavigation_t *	info
	)

Creates navigation arrows on side(s) of the screen.

Parameters

layout	the current layout
info	structure giving the description of the navigation

Returns: >= 0 if OK

Definition at line 186 of file nbgl_layout_nanos.c.

◆ nbgl_layoutAddProgressBar()

int nbgl_layoutAddProgressBar	(	nbgl_layout_t *	layout,
		const nbgl_layoutProgressBar_t *	barLayout
	)

Creates an area in main panel to display a progress bar, with a title text and a description under the progress.

Parameters

layout	the current layout
barLayout	structure giving the description of progress bar

Returns: >= 0 if OK

Definition at line 587 of file nbgl_layout_nanos.c.

◆ nbgl_layoutAddSwitch()

int nbgl_layoutAddSwitch	(	nbgl_layout_t *	layout,
		const nbgl_layoutSwitch_t *	switchLayout
	)

Creates an area in main panel to display a switch.

Parameters

layout	the current layout
switchLayout	structure giving the description of switch

Returns: >= 0 if OK

Definition at line 683 of file nbgl_layout_nanos.c.

◆ nbgl_layoutAddText()

int nbgl_layoutAddText	(	nbgl_layout_t *	layout,
		const char *	text,
		const char *	subText,
		nbgl_contentCenteredInfoStyle_t	style
	)

Creates an area with given text and sub text, using the given style.

Parameters

layout	the current layout
text	main text, must be single line if subText
subText	description under main text (NULL terminated, in regular, 3 lines max, may be null)
style	if REGULAR_INFO, use regular font for text, otherwise use bold font for text

Returns: >= 0 if OK

Definition at line 225 of file nbgl_layout_nanos.c.

◆ nbgl_layoutDraw()

int nbgl_layoutDraw ( nbgl_layout_t * layoutParam )

Applies given layout. The screen will be redrawn.

Parameters

layoutParam layout to redraw

Returns: a pointer to the corresponding layout

Definition at line 760 of file nbgl_layout_nanos.c.

◆ nbgl_layoutGet()

nbgl_layout_t * nbgl_layoutGet ( const nbgl_layoutDescription_t * description )

returns a layout of the given type. The layout is reset

Parameters

description description of layout

Returns: a pointer to the corresponding layout

Definition at line 134 of file nbgl_layout_nanos.c.

◆ nbgl_layoutRelease()

int nbgl_layoutRelease ( nbgl_layout_t * layoutParam )

Release the layout obtained with nbgl_layoutGet()

Parameters

layoutParam layout to release

Returns: >= 0 if OK

Definition at line 779 of file nbgl_layout_nanos.c.

◆ nbgl_layoutUpdateEnteredText()

int nbgl_layoutUpdateEnteredText	(	nbgl_layout_t *	layout,
		uint8_t	index,
		const char *	text
	)

Updates an existing "text entry" area, created with nbgl_layoutAddEnteredText()

Parameters

layout	the current layout
index	index of the text (return value of nbgl_layoutAddEnteredText())
text	string to display in the area

Returns: <0 if error, 0 if OK with text fitting the area, 1 of 0K with text not fitting the area

Definition at line 211 of file nbgl_layout_keyboard_nanos.c.

◆ nbgl_layoutUpdateHiddenDigits()

int nbgl_layoutUpdateHiddenDigits	(	nbgl_layout_t *	layout,
		uint8_t	index,
		uint8_t	nbActive
	)

Updates an existing set of hidden digits, with the given configuration.

Parameters

layout	the current layout
index	index returned by nbgl_layoutAddHiddenDigits()
nbActive	number of "active" digits (represented by discs instead of circles)

Returns: >=0 if OK

Definition at line 174 of file nbgl_layout_keypad_nanos.c.

◆ nbgl_layoutUpdateKeyboard()

int nbgl_layoutUpdateKeyboard	(	nbgl_layout_t *	layout,
		uint8_t	index,
		uint32_t	keyMask
	)

Updates an existing keyboard on bottom of the screen, with the given configuration.

Parameters

layout	the current layout
index	index returned by nbgl_layoutAddKeyboard()
keyMask	mask of keys to activate/deactivate on keyboard

Returns: >=0 if OK

Definition at line 98 of file nbgl_layout_keyboard_nanos.c.

◆ nbgl_layoutUpdateKeypad()

int nbgl_layoutUpdateKeypad	(	nbgl_layout_t *	layout,
		uint8_t	index,
		bool	enableValidate,
		bool	enableBackspace
	)

Updates an existing keypad on bottom of the screen, with the given configuration.

Parameters

layout	the current layout
index	index returned by nbgl_layoutAddKeypad()
enableValidate	if true, enable Validate key
enableBackspace	if true, enable Backspace key

Returns: >=0 if OK

Definition at line 112 of file nbgl_layout_keypad_nanos.c.

◆ nbgl_layoutUpdateKeypadContent()

int nbgl_layoutUpdateKeypadContent	(	nbgl_layout_t *	layout,
		bool	hidden,
		uint8_t	nbActiveDigits,
		const char *	text
	)

Updates an existing set of hidden digits, with the given configuration.

Parameters

layout	the current layout
hidden	if set to true, digits appear as discs, otherwise as visible digits (given in text param)
nbActiveDigits	number of "active" digits (represented by discs instead of circles) (only used if hidden is true)
text	only used if hidden is false

Returns: >=0 if OK

Definition at line 277 of file nbgl_layout_keypad_nanos.c.

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ AVAILABLE_WIDTH

◆ NB_MAX_DESCRIPTIONS

◆ NB_MAX_LINES

◆ NB_MAX_SUGGESTION_BUTTONS

◆ NBGL_INVALID_TOKEN

◆ NBGL_NO_PROGRESS_INDICATOR

◆ NBGL_NO_TUNE

◆ SPINNER_FIXED

Typedef Documentation

◆ nbgl_layout_t

◆ nbgl_layoutButtonCallback_t

◆ nbgl_layoutCenteredInfo_t

◆ nbgl_layoutDescription_t

◆ nbgl_layoutRadioChoice_t

◆ nbgl_layoutSwitch_t

◆ nbgl_layoutTagValue_t

◆ nbgl_layoutTagValueList_t

◆ nbgl_layoutTouchCallback_t

◆ nbgl_menuListCallback_t

Enumeration Type Documentation

◆ nbgl_layoutButtonStyle_t

◆ nbgl_layoutKeyboardContentType_t

◆ nbgl_layoutNavDirection_t

◆ nbgl_layoutNavIndication_t

Function Documentation

◆ nbgl_layoutAddButton()

◆ nbgl_layoutAddCenteredInfo()

◆ nbgl_layoutAddContentCenter()

◆ nbgl_layoutAddEnteredText()

◆ nbgl_layoutAddEnteredTextAdvanced()

◆ nbgl_layoutAddHiddenDigits()

◆ nbgl_layoutAddKeyboard()

◆ nbgl_layoutAddKeypad()

◆ nbgl_layoutAddKeypadContent()

◆ nbgl_layoutAddLeftContent()

◆ nbgl_layoutAddMenuList()

◆ nbgl_layoutAddNavigation()

◆ nbgl_layoutAddProgressBar()

◆ nbgl_layoutAddSwitch()

◆ nbgl_layoutAddText()

◆ nbgl_layoutDraw()

◆ nbgl_layoutGet()

◆ nbgl_layoutRelease()

◆ nbgl_layoutUpdateEnteredText()

◆ nbgl_layoutUpdateHiddenDigits()

◆ nbgl_layoutUpdateKeyboard()

◆ nbgl_layoutUpdateKeypad()

◆ nbgl_layoutUpdateKeypadContent()
