Step construction API of NBGL. More...

#include "nbgl_layout.h"
#include "nbgl_obj.h"
#include "nbgl_types.h"

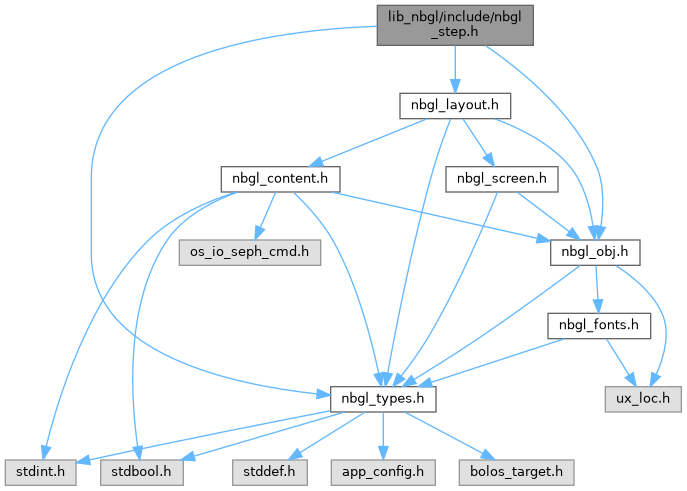

Include dependency graph for nbgl_step.h:

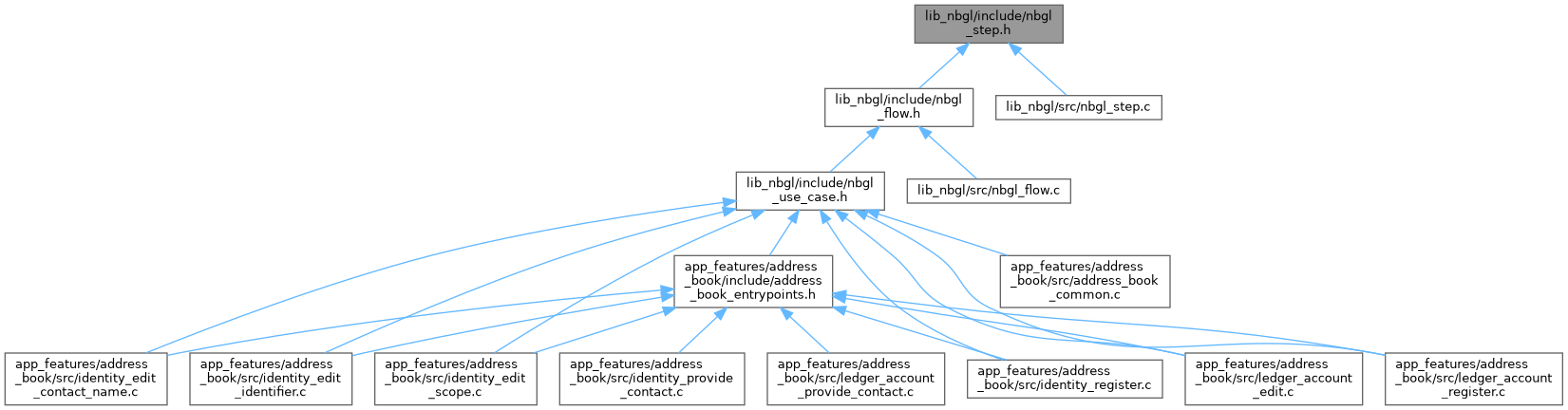

This graph shows which files directly or indirectly include this file:

Macros
#define	GET_POS_OF_STEP(_step, _nb_steps)

#define	FORWARD_DIRECTION 0x00
	When the flow is navigated from last to first step.

#define	BACKWARD_DIRECTION 0x08
	When action callback applies on any button press.

#define	ACTION_ON_ANY_BUTTON 0x40
	When action callback applies only on both button press.

#define	ACTION_ON_BOTH_BUTTONS 0x00
	mask for the position of the step in nbgl_stepPosition_t

#define	STEP_POSITION_MASK 0x03

Typedefs
typedef void *	nbgl_step_t
	type shared externally

typedef void(*	nbgl_stepMenuListCallback_t) (uint8_t choiceIndex)
	prototype of chosen menu list item callback

typedef void(*	nbgl_stepButtonCallback_t) (nbgl_step_t stepCtx, nbgl_buttonEvent_t event)
	prototype of function to be called when buttons are touched on a screen

typedef uint8_t	nbgl_stepPosition_t
	this type is a bitfield containing:

Enumerations
enum	{ SINGLE_STEP , FIRST_STEP , LAST_STEP , NEITHER_FIRST_NOR_LAST_STEP }
	possible position for a step in a flow More...

Functions
nbgl_step_t	nbgl_stepDrawText (nbgl_stepPosition_t pos, nbgl_stepButtonCallback_t onActionCallback, nbgl_screenTickerConfiguration_t ticker, const char text, const char *subText, nbgl_contentCenteredInfoStyle_t style, bool modal)
	draws a text type step, that can be multi-pages, depending of the length of text and subText. The navigation arrows are displayed depending of the given position of this step in a flow, and depending of the page in case of multi-pages

nbgl_step_t	nbgl_stepDrawCenteredInfo (nbgl_stepPosition_t pos, nbgl_stepButtonCallback_t onActionCallback, nbgl_screenTickerConfiguration_t ticker, nbgl_layoutCenteredInfo_t info, bool modal)
	draw a step with a centered info (icon + text). This is always a single page step

nbgl_step_t	nbgl_stepDrawMenuList (nbgl_stepMenuListCallback_t onActionCallback, nbgl_screenTickerConfiguration_t ticker, nbgl_layoutMenuList_t list, bool modal)
	draw a step page with a menu list and navigation arrows to parse it. This step must be alone

uint8_t	nbgl_stepGetMenuListCurrent (nbgl_step_t step)
	Get the index of the currently selected item in the menulist.

nbgl_step_t	nbgl_stepDrawSwitch (nbgl_stepPosition_t pos, nbgl_stepButtonCallback_t onActionCallback, nbgl_screenTickerConfiguration_t ticker, nbgl_layoutSwitch_t switchInfo, bool modal)
	draw a step page with a switch and navigation arrows to navigate to other pages.

int	nbgl_stepRelease (nbgl_step_t step)
	Release the step obtained with any of the nbgl_stepDrawXXX() functions.

Detailed Description

Step construction API of NBGL.

Definition in file nbgl_step.h.

Macro Definition Documentation

◆ ACTION_ON_ANY_BUTTON

#define ACTION_ON_ANY_BUTTON 0x40

When action callback applies only on both button press.

Definition at line 76 of file nbgl_step.h.

◆ ACTION_ON_BOTH_BUTTONS

#define ACTION_ON_BOTH_BUTTONS 0x00

mask for the position of the step in nbgl_stepPosition_t

Definition at line 78 of file nbgl_step.h.

◆ BACKWARD_DIRECTION

#define BACKWARD_DIRECTION 0x08

When action callback applies on any button press.

Definition at line 74 of file nbgl_step.h.

◆ FORWARD_DIRECTION

#define FORWARD_DIRECTION 0x00

When the flow is navigated from last to first step.

Definition at line 72 of file nbgl_step.h.

◆ GET_POS_OF_STEP

#define GET_POS_OF_STEP	(	_step,
		_nb_steps
	)

Value:

    (_nb_steps < 2)                       \
        ? SINGLE_STEP                     \
        : ((_step == 0) ? FIRST_STEP      \
                        : ((_step == (_nb_steps - 1)) ? LAST_STEP : NEITHER_FIRST_NOR_LAST_STEP))

get the "position" of a step within a flow of several steps

Parameters

_step	step index from which to get the position
_nb_steps	number of steps in the flow

Definition at line 30 of file nbgl_step.h.

◆ STEP_POSITION_MASK

#define STEP_POSITION_MASK 0x03

Definition at line 79 of file nbgl_step.h.

Typedef Documentation

◆ nbgl_step_t

typedef void* nbgl_step_t

type shared externally

Definition at line 44 of file nbgl_step.h.

◆ nbgl_stepButtonCallback_t

typedef void(* nbgl_stepButtonCallback_t) (nbgl_step_t stepCtx, nbgl_buttonEvent_t event)

prototype of function to be called when buttons are touched on a screen

Parameters

stepCtx	context returned by the nbgl_stepDrawXXX function
event	type of button event

Definition at line 57 of file nbgl_step.h.

◆ nbgl_stepMenuListCallback_t

typedef void(* nbgl_stepMenuListCallback_t) (uint8_t choiceIndex)

prototype of chosen menu list item callback

Parameters

choiceIndex index of the menu list item

Definition at line 50 of file nbgl_step.h.

◆ nbgl_stepPosition_t

typedef uint8_t nbgl_stepPosition_t

this type is a bitfield containing:

bit[3]: if 1, backward direction, if 0 forward
bit[2]: if 1, action on any button, if 0 action only on double button
bit[1:0]: possible positions for a step in a flow

Definition at line 88 of file nbgl_step.h.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

possible position for a step in a flow

Enumerator
SINGLE_STEP	single step flow
FIRST_STEP	first in a multiple steps flow
LAST_STEP	last in a multiple steps flow
NEITHER_FIRST_NOR_LAST_STEP	neither first nor last in a multiple steps flow

Definition at line 63 of file nbgl_step.h.

Function Documentation

◆ nbgl_stepDrawCenteredInfo()

nbgl_step_t nbgl_stepDrawCenteredInfo	(	nbgl_stepPosition_t	pos,
		nbgl_stepButtonCallback_t	onActionCallback,
		nbgl_screenTickerConfiguration_t *	ticker,
		nbgl_layoutCenteredInfo_t *	info,
		bool	modal
	)

draw a step with a centered info (icon + text). This is always a single page step

Parameters

pos	position of this step in the flow (first, last, single, not_first_nor_last)
onActionCallback	common callback for all actions on this page
ticker	ticker configuration, set to NULL to disable it
info	all information about the centered info to be displayed
modal	if true, means this step shall be displayed on top of existing one

Returns: the step context (or NULL if error)

Definition at line 564 of file nbgl_step.c.

◆ nbgl_stepDrawMenuList()

nbgl_step_t nbgl_stepDrawMenuList	(	nbgl_stepMenuListCallback_t	onActionCallback,
		nbgl_screenTickerConfiguration_t *	ticker,
		nbgl_layoutMenuList_t *	list,
		bool	modal
	)

draw a step page with a menu list and navigation arrows to parse it. This step must be alone

Parameters

onActionCallback	common callback for all actions on this page
ticker	ticker configuration, set to NULL to disable it
list	configuration of the menu list
modal	if true, means this step shall be displayed on top of existing one

Returns: the step context (or NULL if error)

Definition at line 619 of file nbgl_step.c.

◆ nbgl_stepDrawSwitch()

nbgl_step_t nbgl_stepDrawSwitch	(	nbgl_stepPosition_t	pos,
		nbgl_stepButtonCallback_t	onActionCallback,
		nbgl_screenTickerConfiguration_t *	ticker,
		nbgl_layoutSwitch_t *	switchInfo,
		bool	modal
	)

draw a step page with a switch and navigation arrows to navigate to other pages.

Note: Switch name must fit in one line, description on 2 lines max.

Parameters

pos	position of this step in the flow (first, last, single, not_first_nor_last)
onActionCallback	common callback for all actions on this page
ticker	ticker configuration, set to NULL to disable it
switchInfo	all information about the switch to be displayed
modal	if true, means this step shall be displayed on top of existing one

Returns: the step context (or NULL if error)

Definition at line 675 of file nbgl_step.c.

◆ nbgl_stepDrawText()

nbgl_step_t nbgl_stepDrawText	(	nbgl_stepPosition_t	pos,
		nbgl_stepButtonCallback_t	onActionCallback,
		nbgl_screenTickerConfiguration_t *	ticker,
		const char *	text,
		const char *	subText,
		nbgl_contentCenteredInfoStyle_t	style,
		bool	modal
	)

draws a text type step, that can be multi-pages, depending of the length of text and subText. The navigation arrows are displayed depending of the given position of this step in a flow, and depending of the page in case of multi-pages

Parameters

pos	position of this step in the flow (first, last, single, not_first_nor_last)
onActionCallback	common callback for all actions on this page
ticker	ticker configuration, set to NULL to disable it
text	text to display (depending of style)
subText	text to display under text (depending of style)
style	style to use for text and subText
modal	if true, means this step shall be displayed on top of existing one

Returns: the step context (or NULL if error)

Definition at line 456 of file nbgl_step.c.

◆ nbgl_stepGetMenuListCurrent()

uint8_t nbgl_stepGetMenuListCurrent ( nbgl_step_t step )

Get the index of the currently selected item in the menulist.

Parameters

step	step from which to get the current menulist choice

Returns: current menulist choice

Definition at line 654 of file nbgl_step.c.

◆ nbgl_stepRelease()

int nbgl_stepRelease ( nbgl_step_t step )

Release the step obtained with any of the nbgl_stepDrawXXX() functions.

Parameters

step	step to release

Returns: >= 0 if OK

Definition at line 726 of file nbgl_step.c.
