nbgl_flow.c File Reference

Implementation of flow management. More...

#include <string.h>
#include "nbgl_debug.h"
#include "nbgl_flow.h"
#include "glyphs.h"
#include "os_pic.h"
#include "ux.h"

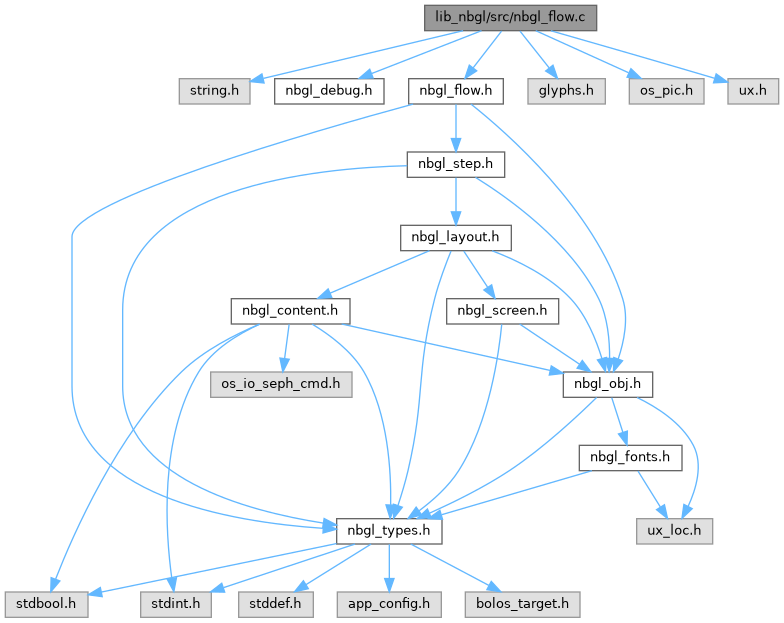

Include dependency graph for nbgl_flow.c:

Go to the source code of this file.

Classes
struct	FlowContext_s

Macros
#define	NB_MAX_LAYERS   3
	< Maximum number of layers for flow, cannot be greater than max number of step layers

Typedefs
typedef struct FlowContext_s	FlowContext_t

Functions
static void	actionCallback (nbgl_step_t stepCtx, nbgl_buttonEvent_t event)
static FlowContext_t *	getFreeContext (bool modal)
static FlowContext_t *	getContextFromStepCtx (nbgl_step_t stepCtx)
static void	drawStep (FlowContext_t *ctx, nbgl_stepPosition_t pos, bool modal, const nbgl_icon_details_t *icon, const char *txt, const char *subTxt)
nbgl_flow_t	nbgl_flowDraw (const nbgl_stepDesc_t *steps, uint8_t nbSteps, uint8_t initStep, bool loop, bool modal)
	draw the given flow, starting at the given step
void	nbgl_flowRelease (nbgl_flow_t flow)
	release the given flow

Variables
static FlowContext_t	contexts [NB_MAX_LAYERS]

Detailed Description

Implementation of flow management.

Definition in file nbgl_flow.c.

Macro Definition Documentation

NB_MAX_LAYERS

#define NB_MAX_LAYERS   3

< Maximum number of layers for flow, cannot be greater than max number of step layers

Definition at line 27 of file nbgl_flow.c.

Typedef Documentation

FlowContext_t

typedef struct FlowContext_s FlowContext_t

Function Documentation

actionCallback()

static void actionCallback ( nbgl_step_t  stepCtx, nbgl_buttonEvent_t  event  )

static

Definition at line 133 of file nbgl_flow.c.

drawStep()

static void drawStep ( FlowContext_t *  ctx, nbgl_stepPosition_t  pos, bool  modal, const nbgl_icon_details_t *  icon, const char *  txt, const char *  subTxt  )

static

Definition at line 103 of file nbgl_flow.c.

getContextFromStepCtx()

static FlowContext_t * getContextFromStepCtx ( nbgl_step_t  stepCtx )

static

Definition at line 85 of file nbgl_flow.c.

getFreeContext()

static FlowContext_t * getFreeContext ( bool  modal )

static

Definition at line 56 of file nbgl_flow.c.

nbgl_flowDraw()

nbgl_flow_t nbgl_flowDraw	(	const nbgl_stepDesc_t *	steps,
		uint8_t	nbSteps,
		uint8_t	initStep,
		bool	loop,
		bool	modal
	)

draw the given flow, starting at the given step

Parameters

steps	array of step descriptions
nbSteps	number of steps in above array
initStep	init step in above array
loop	if true, loop between last and first step, in both direction
modal	if true, screens are modal

Returns

>= 0 if OK, < 0 otherwise

Definition at line 194 of file nbgl_flow.c.

nbgl_flowRelease()

void nbgl_flowRelease

(

nbgl_flow_t

flow

)

release the given flow

Parameters

flow	flow to release

Definition at line 234 of file nbgl_flow.c.

Variable Documentation

contexts

FlowContext_t contexts[NB_MAX_LAYERS]

static

Definition at line 44 of file nbgl_flow.c.
