identity_provide_contact.c File Reference

Provide Contact flow (P1=0x20, struct type 0x33). More...

#include <string.h>
#include "os_utils.h"
#include "status_words.h"
#include "tlv_library.h"
#include "buffer.h"
#include "bip32.h"
#include "address_book.h"
#include "address_book_entrypoints.h"
#include "address_book_crypto.h"
#include "address_book_common.h"
#include "identity.h"

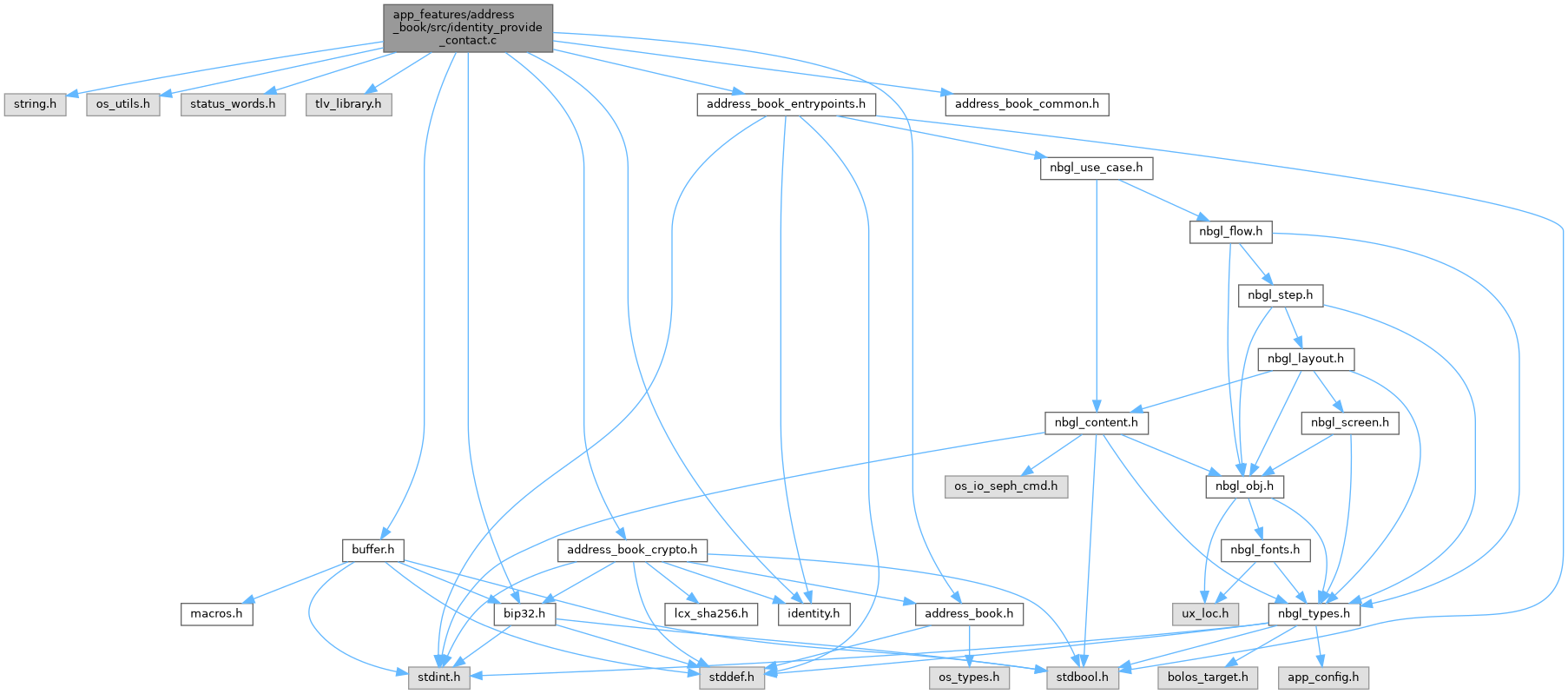

Include dependency graph for identity_provide_contact.c:

Go to the source code of this file.

Classes

struct  s_provide_contact_ctx

Macros

#define STRUCT_VERSION   0x01
#define PROVIDE_CONTACT_TAGS(X)

Functions

static bool handle_struct_type (const tlv_data_t *data, void *context_ptr)
 Handler for tag STRUCTURE_TYPE.
static bool handle_struct_version (const tlv_data_t *data, void *context_ptr)
 Handler for tag STRUCTURE_VERSION.
static bool handle_contact_name (const tlv_data_t *data, void *context_ptr)
 Handler for tag CONTACT_NAME.
static bool handle_scope (const tlv_data_t *data, void *context_ptr)
 Handler for tag SCOPE.
static bool handle_identifier (const tlv_data_t *data, void *context_ptr)
 Handler for tag ACCOUNT_IDENTIFIER.
static bool handle_group_handle (const tlv_data_t *data, void *context_ptr)
 Handler for tag GROUP_HANDLE.
static bool handle_chain_id (const tlv_data_t *data, void *context_ptr)
 Handler for tag CHAIN_ID.
static bool handle_blockchain_family (const tlv_data_t *data, void *context_ptr)
 Handler for tag BLOCKCHAIN_FAMILY.
static bool handle_hmac_proof (const tlv_data_t *data, void *context_ptr)
 Handler for tag HMAC_PROOF.
static bool handle_hmac_rest (const tlv_data_t *data, void *context_ptr)
 Handler for tag HMAC_REST.
static bool verify_fields (const s_provide_contact_ctx *context)
 Check that all mandatory TLV tags were received.
static void print_payload (const s_provide_contact_ctx *context)
 Print the received descriptor.
bolos_err_t provide_contact (uint8_t *buffer_in, size_t buffer_in_length)
 Deliver a verified contact to the coin application.

Detailed Description

Provide Contact flow (P1=0x20, struct type 0x33).

Delivers a previously registered contact to the coin application so that the application can substitute the human-readable name for a raw identifier (e.g. an Ethereum address) during transaction review.

Flow:

  1. Receive fully assembled payload (multi-chunk reassembly handled by address_book.c)
  2. Parse TLV payload (contact_name + scope + identifier + group_handle [+ derivation_path] + blockchain_family [+ chain_id] + hmac_proof + hmac_rest)
  3. Verify group_handle → extract gid
  4. Verify HMAC_PROOF over (gid, contact_name)
  5. Verify HMAC_REST over (gid, scope, identifier, family[, chain_id])
  6. Call handle_provide_identity() so the coin app can store the contact
  7. Return SWO_SUCCESS (9000, no data)

Active under HAVE_ADDRESS_BOOK.

Definition in file identity_provide_contact.c.

Macro Definition Documentation

◆ PROVIDE_CONTACT_TAGS

#define PROVIDE_CONTACT_TAGS ( X)
Value:
X(0x01, TAG_STRUCTURE_TYPE, handle_struct_type, ENFORCE_UNIQUE_TAG) \
X(0x02, TAG_STRUCTURE_VERSION, handle_struct_version, ENFORCE_UNIQUE_TAG) \
X(0xf0, TAG_CONTACT_NAME, handle_contact_name, ENFORCE_UNIQUE_TAG) \
X(0xf1, TAG_SCOPE, handle_scope, ENFORCE_UNIQUE_TAG) \
X(0xf2, TAG_ACCOUNT_IDENTIFIER, handle_identifier, ENFORCE_UNIQUE_TAG) \
X(0xf6, TAG_GROUP_HANDLE, handle_group_handle, ENFORCE_UNIQUE_TAG) \
X(0x23, TAG_CHAIN_ID, handle_chain_id, ENFORCE_UNIQUE_TAG) \
X(0x51, TAG_BLOCKCHAIN_FAMILY, handle_blockchain_family, ENFORCE_UNIQUE_TAG) \
X(0x29, TAG_HMAC_PROOF, handle_hmac_proof, ENFORCE_UNIQUE_TAG) \
X(0xf7, TAG_HMAC_REST, handle_hmac_rest, ENFORCE_UNIQUE_TAG)
static bool handle_contact_name(const tlv_data_t *data, void *context_ptr)
Handler for tag CONTACT_NAME.
static bool handle_hmac_proof(const tlv_data_t *data, void *context_ptr)
Handler for tag HMAC_PROOF.
static bool handle_struct_type(const tlv_data_t *data, void *context_ptr)
Handler for tag STRUCTURE_TYPE.
static bool handle_struct_version(const tlv_data_t *data, void *context_ptr)
Handler for tag STRUCTURE_VERSION.
static bool handle_group_handle(const tlv_data_t *data, void *context_ptr)
Handler for tag GROUP_HANDLE.
static bool handle_blockchain_family(const tlv_data_t *data, void *context_ptr)
Handler for tag BLOCKCHAIN_FAMILY.
static bool handle_scope(const tlv_data_t *data, void *context_ptr)
Handler for tag SCOPE.
static bool handle_chain_id(const tlv_data_t *data, void *context_ptr)
Handler for tag CHAIN_ID.
static bool handle_identifier(const tlv_data_t *data, void *context_ptr)
Handler for tag ACCOUNT_IDENTIFIER.
static bool handle_hmac_rest(const tlv_data_t *data, void *context_ptr)
Handler for tag HMAC_REST.
@ ENFORCE_UNIQUE_TAG

Definition at line 68 of file identity_provide_contact.c.

◆ STRUCT_VERSION

#define STRUCT_VERSION   0x01

Definition at line 56 of file identity_provide_contact.c.

Function Documentation

◆ handle_blockchain_family()

bool handle_blockchain_family ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag BLOCKCHAIN_FAMILY.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 223 of file identity_provide_contact.c.

◆ handle_chain_id()

bool handle_chain_id ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag CHAIN_ID.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 209 of file identity_provide_contact.c.

◆ handle_contact_name()

bool handle_contact_name ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag CONTACT_NAME.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 129 of file identity_provide_contact.c.

◆ handle_group_handle()

bool handle_group_handle ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag GROUP_HANDLE.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 188 of file identity_provide_contact.c.

◆ handle_hmac_proof()

bool handle_hmac_proof ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag HMAC_PROOF.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 237 of file identity_provide_contact.c.

◆ handle_hmac_rest()

bool handle_hmac_rest ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag HMAC_REST.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 258 of file identity_provide_contact.c.

◆ handle_identifier()

bool handle_identifier ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag ACCOUNT_IDENTIFIER.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 167 of file identity_provide_contact.c.

◆ handle_scope()

bool handle_scope ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag SCOPE.

Parameters
[in]datathe tlv data
[out]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 148 of file identity_provide_contact.c.

◆ handle_struct_type()

bool handle_struct_type ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag STRUCTURE_TYPE.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 91 of file identity_provide_contact.c.

◆ handle_struct_version()

bool handle_struct_version ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag STRUCTURE_VERSION.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 110 of file identity_provide_contact.c.

◆ print_payload()

void print_payload ( const s_provide_contact_ctx * context)
static

Print the received descriptor.

Parameters
[in]contextthe received payload Only for debug purpose.

Definition at line 311 of file identity_provide_contact.c.

◆ provide_contact()

bolos_err_t provide_contact ( uint8_t * buffer_in,
size_t buffer_in_length )

Deliver a verified contact to the coin application.

Parses, verifies, and passes the contact to the coin app callback. Returns SWO_SUCCESS (9000) with no response data on success.

Parameters
[in]buffer_inthe fully assembled TLV payload
[in]buffer_in_lengththe length of the payload
Returns
bolos_err_t the result of the command

Definition at line 337 of file identity_provide_contact.c.

◆ verify_fields()

bool verify_fields ( const s_provide_contact_ctx * context)
static

Check that all mandatory TLV tags were received.

Parameters
[in]contextthe received payload
Returns
whether all mandatory fields are present

Definition at line 279 of file identity_provide_contact.c.
