identity_edit_contact_name.c File Reference

Edit Contact Name flow (P1=0x02, struct type 0x2e). More...

#include <string.h>
#include "os_utils.h"
#include "os_apdu.h"
#include "status_words.h"
#include "tlv_library.h"
#include "buffer.h"
#include "bip32.h"
#include "address_book.h"
#include "address_book_entrypoints.h"
#include "address_book_crypto.h"
#include "address_book_common.h"
#include "identity.h"
#include "io.h"
#include "nbgl_use_case.h"

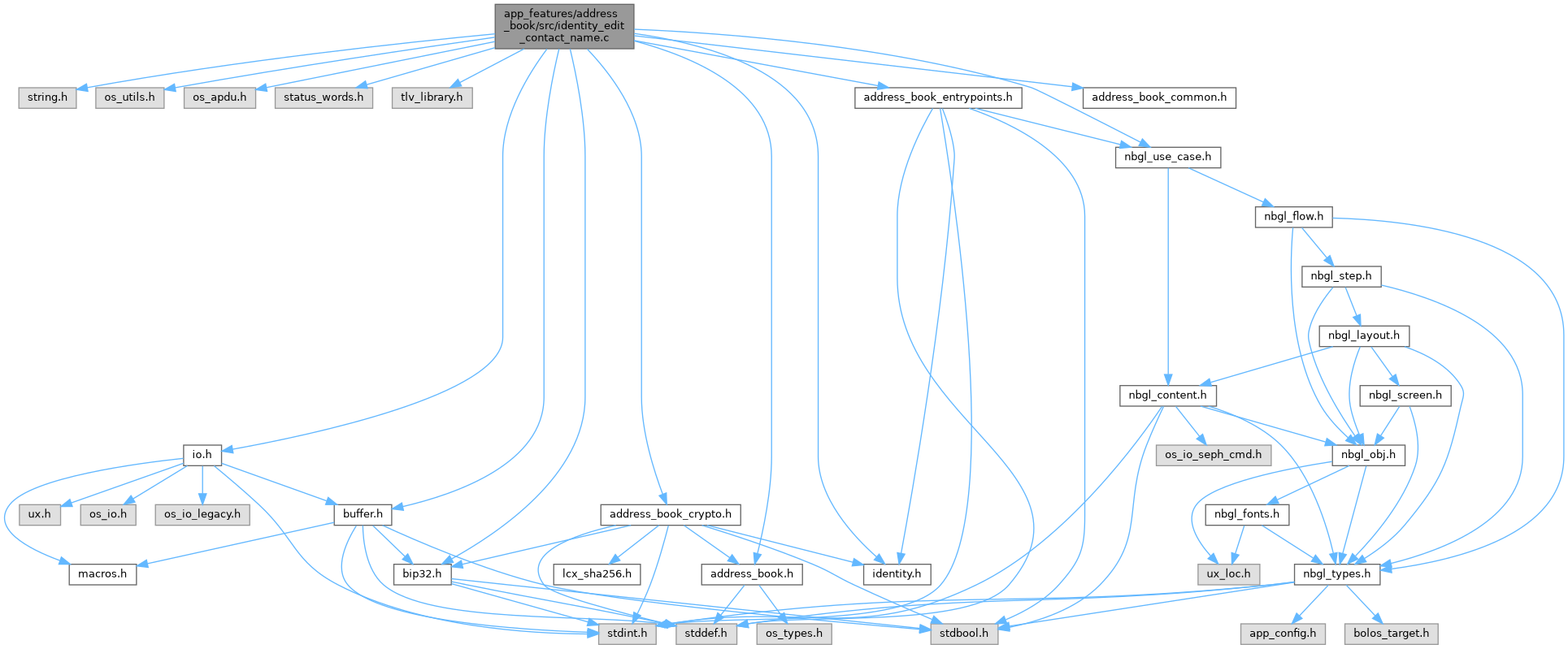

Include dependency graph for identity_edit_contact_name.c:

Go to the source code of this file.

Classes

struct  s_edit_contact_name_ctx

Macros

#define STRUCT_VERSION   0x01
#define EDIT_CONTACT_NAME_TAGS(X)

Functions

static bool handle_struct_type (const tlv_data_t *data, void *context_ptr)
 Handler for tag STRUCTURE_TYPE.
static bool handle_struct_version (const tlv_data_t *data, void *context_ptr)
 Handler for tag STRUCTURE_VERSION.
static bool handle_contact_name (const tlv_data_t *data, void *context_ptr)
 Handler for tag CONTACT_NAME.
static bool handle_previous_name (const tlv_data_t *data, void *context_ptr)
 Handler for tag PREVIOUS_NAME.
static bool handle_group_handle (const tlv_data_t *data, void *context_ptr)
 Handler for tag GROUP_HANDLE.
static bool handle_hmac_proof (const tlv_data_t *data, void *context_ptr)
 Handler for tag HMAC_PROOF.
static bool verify_fields (const s_edit_contact_name_ctx *context)
 Check that all mandatory TLV tags were received.
static void print_payload (const s_edit_contact_name_ctx *context)
 Print the received descriptor.
static bool build_and_send_response (void)
 Build and send response.
static void review_choice (bool confirm)
 NBGL callback invoked after the user confirms or rejects the edit.
static void ui_display (void)
 Display the Edit Contact Name review screen.
bolos_err_t edit_contact_name (uint8_t *buffer_in, size_t buffer_in_length)
 Edit the CONTACT_NAME of an existing Identity contact.

Detailed Description

Edit Contact Name flow (P1=0x02, struct type 0x2e).

Allows changing the CONTACT_NAME of an existing Identity contact. Because HMAC_PROOF covers only (gid, name), the wallet does not need to transmit the identifier, scope, or network fields.

Flow:

  1. Parse TLV payload (gid + new_name + previous_name [+ derivation_path] + hmac_proof)
  2. Verify HMAC_PROOF over (gid, previous_name)
  3. Display UI: old name → new name
  4. On confirm: compute new HMAC_PROOF over (gid, new_name) and send

Active under HAVE_ADDRESS_BOOK.

Definition in file identity_edit_contact_name.c.

Macro Definition Documentation

◆ EDIT_CONTACT_NAME_TAGS

#define EDIT_CONTACT_NAME_TAGS ( X)
Value:
X(0x01, TAG_STRUCTURE_TYPE, handle_struct_type, ENFORCE_UNIQUE_TAG) \
X(0x02, TAG_STRUCTURE_VERSION, handle_struct_version, ENFORCE_UNIQUE_TAG) \
X(0xf0, TAG_CONTACT_NAME, handle_contact_name, ENFORCE_UNIQUE_TAG) \
X(0xf3, TAG_PREVIOUS_NAME, handle_previous_name, ENFORCE_UNIQUE_TAG) \
X(0xf6, TAG_GROUP_HANDLE, handle_group_handle, ENFORCE_UNIQUE_TAG) \
X(0x29, TAG_HMAC_PROOF, handle_hmac_proof, ENFORCE_UNIQUE_TAG)
static bool handle_contact_name(const tlv_data_t *data, void *context_ptr)
Handler for tag CONTACT_NAME.
static bool handle_hmac_proof(const tlv_data_t *data, void *context_ptr)
Handler for tag HMAC_PROOF.
static bool handle_previous_name(const tlv_data_t *data, void *context_ptr)
Handler for tag PREVIOUS_NAME.
static bool handle_struct_type(const tlv_data_t *data, void *context_ptr)
Handler for tag STRUCTURE_TYPE.
static bool handle_struct_version(const tlv_data_t *data, void *context_ptr)
Handler for tag STRUCTURE_VERSION.
static bool handle_group_handle(const tlv_data_t *data, void *context_ptr)
Handler for tag GROUP_HANDLE.
@ ENFORCE_UNIQUE_TAG

Definition at line 66 of file identity_edit_contact_name.c.

◆ STRUCT_VERSION

#define STRUCT_VERSION   0x01

Definition at line 54 of file identity_edit_contact_name.c.

Function Documentation

◆ build_and_send_response()

bool build_and_send_response ( void )
static

Build and send response.

Compute HMAC Proof of Registration and send it to the host Response format: type(1) | hmac_proof(32).

Returns
true if successful, false otherwise

Definition at line 242 of file identity_edit_contact_name.c.

◆ edit_contact_name()

bolos_err_t edit_contact_name ( uint8_t * buffer_in,
size_t buffer_in_length )

Edit the CONTACT_NAME of an existing Identity contact.

Parameters
[in]buffer_inthe TLV payload
[in]buffer_in_lengththe length of the payload
Returns
bolos_err_t the result of the edit

Definition at line 317 of file identity_edit_contact_name.c.

◆ handle_contact_name()

bool handle_contact_name ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag CONTACT_NAME.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 123 of file identity_edit_contact_name.c.

◆ handle_group_handle()

bool handle_group_handle ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag GROUP_HANDLE.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 161 of file identity_edit_contact_name.c.

◆ handle_hmac_proof()

bool handle_hmac_proof ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag HMAC_PROOF.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 182 of file identity_edit_contact_name.c.

◆ handle_previous_name()

bool handle_previous_name ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag PREVIOUS_NAME.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 142 of file identity_edit_contact_name.c.

◆ handle_struct_type()

bool handle_struct_type ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag STRUCTURE_TYPE.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 85 of file identity_edit_contact_name.c.

◆ handle_struct_version()

bool handle_struct_version ( const tlv_data_t * data,
void * context_ptr )
static

Handler for tag STRUCTURE_VERSION.

Parameters
[in]datathe tlv data
[in]context_ptrthe received payload
Returns
whether the handling was successful

Definition at line 104 of file identity_edit_contact_name.c.

◆ print_payload()

void print_payload ( const s_edit_contact_name_ctx * context)
static

Print the received descriptor.

Parameters
[in]contextthe received payload Only for debug purpose.

Definition at line 225 of file identity_edit_contact_name.c.

◆ review_choice()

void review_choice ( bool confirm)
static

NBGL callback invoked after the user confirms or rejects the edit.

Parameters
[in]confirmtrue if user confirmed, false if rejected

Definition at line 264 of file identity_edit_contact_name.c.

◆ ui_display()

void ui_display ( void )
static

Display the Edit Contact Name review screen.

Definition at line 285 of file identity_edit_contact_name.c.

◆ verify_fields()

bool verify_fields ( const s_edit_contact_name_ctx * context)
static

Check that all mandatory TLV tags were received.

Parameters
[in]contextthe received payload
Returns
whether all mandatory fields are present

Definition at line 204 of file identity_edit_contact_name.c.
