nbgl_layout_keypad.c File Reference

Implementation of keypad management of predefined layouts management for Applications. More...

#include <string.h>
#include <stdlib.h>
#include "nbgl_debug.h"
#include "nbgl_front.h"
#include "nbgl_layout_internal.h"
#include "nbgl_obj.h"
#include "nbgl_draw.h"
#include "nbgl_screen.h"
#include "nbgl_touch.h"
#include "glyphs.h"
#include "os_pic.h"
#include "os_helpers.h"
#include "os.h"

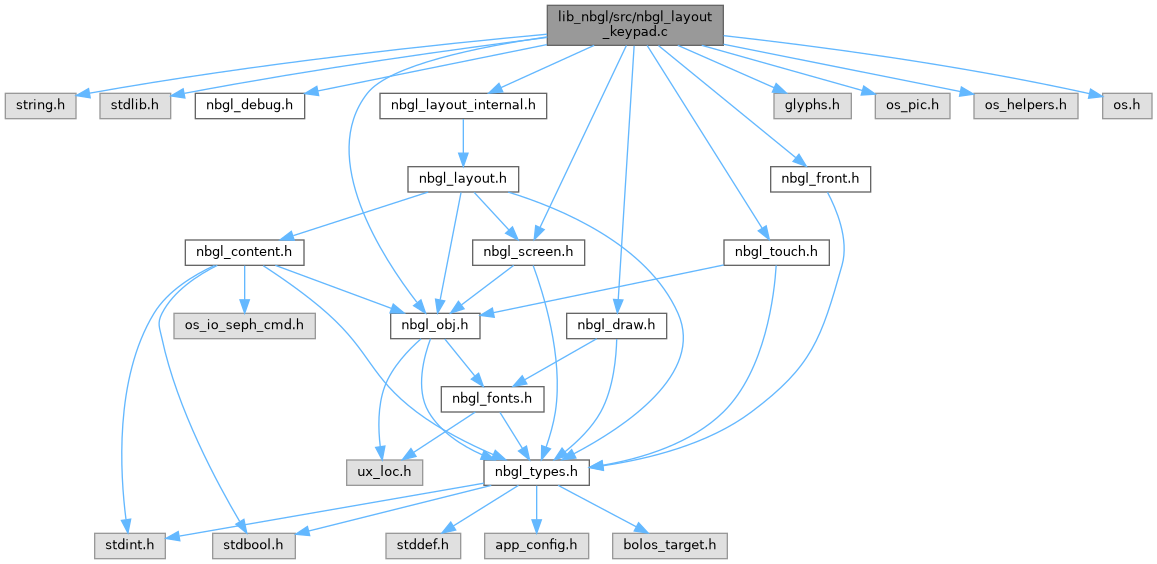

Include dependency graph for nbgl_layout_keypad.c:

Go to the source code of this file.

Enumerations
enum	{ TITLE_INDEX = 0 , INPUT_INDEX , NB_CHILDREN }

Functions
int	nbgl_layoutAddKeypad (nbgl_layout_t *layout, keyboardCallback_t callback, bool shuffled)
	Adds a keypad on bottom of the screen, with the associated callback.
int	nbgl_layoutUpdateKeypad (nbgl_layout_t *layout, uint8_t index, bool enableValidate, bool enableBackspace, bool enableDigits)
	Updates an existing keypad on bottom of the screen, with the given configuration.
int	nbgl_layoutUpdateKeypadValidation (nbgl_layout_t *layout, bool softValidation)
	Updates an existing keypad on bottom of the screen, with the given configuration, without redraw.
int	nbgl_layoutAddKeypadContent (nbgl_layout_t *layout, const char *title, bool hidden, uint8_t nbDigits, const char *text)
	Adds an area with a title and a placeholder for hidden digits on top of a keypad, to represent the entered digits as small discs. On Stax, the placeholder is "underligned" with a thin horizontal line of the expected full length.
int	nbgl_layoutUpdateKeypadContent (nbgl_layout_t *layout, bool hidden, uint8_t nbActiveDigits, const char *text)
	Updates an existing set of hidden digits, with the given configuration.

Detailed Description

Implementation of keypad management of predefined layouts management for Applications.

Note

This file applies only to wallet size products (Stax, Flex...)

Definition in file nbgl_layout_keypad.c.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
TITLE_INDEX
INPUT_INDEX
NB_CHILDREN

Definition at line 30 of file nbgl_layout_keypad.c.

Function Documentation

nbgl_layoutAddKeypad()

int nbgl_layoutAddKeypad	(	nbgl_layout_t *	layout,
		keyboardCallback_t	callback,
		bool	shuffled
	)

Adds a keypad on bottom of the screen, with the associated callback.

Note

Validate and Backspace keys are not enabled at start-up

Parameters

layout	the current layout
callback	function called when any of the key is touched
shuffled	if set to true, digits are shuffled in keypad

Returns

the index of keypad, to use in nbgl_layoutUpdateKeypad()

Definition at line 84 of file nbgl_layout_keypad.c.

nbgl_layoutAddKeypadContent()

int nbgl_layoutAddKeypadContent	(	nbgl_layout_t *	layout,
		const char *	title,
		bool	hidden,
		uint8_t	nbDigits,
		const char *	text
	)

Adds an area with a title and a placeholder for hidden digits on top of a keypad, to represent the entered digits as small discs. On Stax, the placeholder is "underligned" with a thin horizontal line of the expected full length.

Note

It shall be the only object added in the layout, beside a potential header and the keypad itself

Parameters

layout	the current layout
title	the text to use on top of the digits
hidden	if set to true, digits appear as discs, otherwise as visible digits (given in text param)
nbDigits	number of digits to be displayed (only used if hidden is true)
text	only used if hidden is false

Returns

the height of this area, if no error, < 0 otherwise

Definition at line 229 of file nbgl_layout_keypad.c.

nbgl_layoutUpdateKeypad()

int nbgl_layoutUpdateKeypad	(	nbgl_layout_t *	layout,
		uint8_t	index,
		bool	enableValidate,
		bool	enableBackspace,
		bool	enableDigits
	)

Updates an existing keypad on bottom of the screen, with the given configuration.

Parameters

layout	the current layout
index	index returned by nbgl_layoutAddKeypad() (unused, for compatibility)
enableValidate	if true, enable Validate key
enableBackspace	if true, enable Backspace key
enableDigits	if true, enable all digit keys

Returns

>=0 if OK

Definition at line 147 of file nbgl_layout_keypad.c.

nbgl_layoutUpdateKeypadContent()

int nbgl_layoutUpdateKeypadContent	(	nbgl_layout_t *	layout,
		bool	hidden,
		uint8_t	nbActiveDigits,
		const char *	text
	)

Updates an existing set of hidden digits, with the given configuration.

Parameters

layout	the current layout
hidden	if set to true, digits appear as discs, otherwise as visible digits (given in text param)
nbActiveDigits	number of "active" digits (represented by discs instead of circles) (only used if hidden is true)
text	only used if hidden is false

Returns

>=0 if OK

Definition at line 384 of file nbgl_layout_keypad.c.

nbgl_layoutUpdateKeypadValidation()

int nbgl_layoutUpdateKeypadValidation	(	nbgl_layout_t *	layout,
		bool	softValidation
	)

Updates an existing keypad on bottom of the screen, with the given configuration, without redraw.

Parameters

layout	the current layout
softValidation	if true, the "check icon" is replaced by an arrow

Returns

>=0 if OK

Definition at line 191 of file nbgl_layout_keypad.c.
