Implementation of predefined keyboard related layouts management. More...

#include <string.h>
#include <stdlib.h>
#include <stdio.h>
#include "nbgl_debug.h"
#include "nbgl_front.h"
#include "nbgl_layout_internal.h"
#include "nbgl_obj.h"
#include "nbgl_draw.h"
#include "nbgl_screen.h"
#include "nbgl_touch.h"
#include "glyphs.h"
#include "os_io_seph_cmd.h"
#include "os_io_seph_ux.h"
#include "os_pic.h"
#include "os_helpers.h"

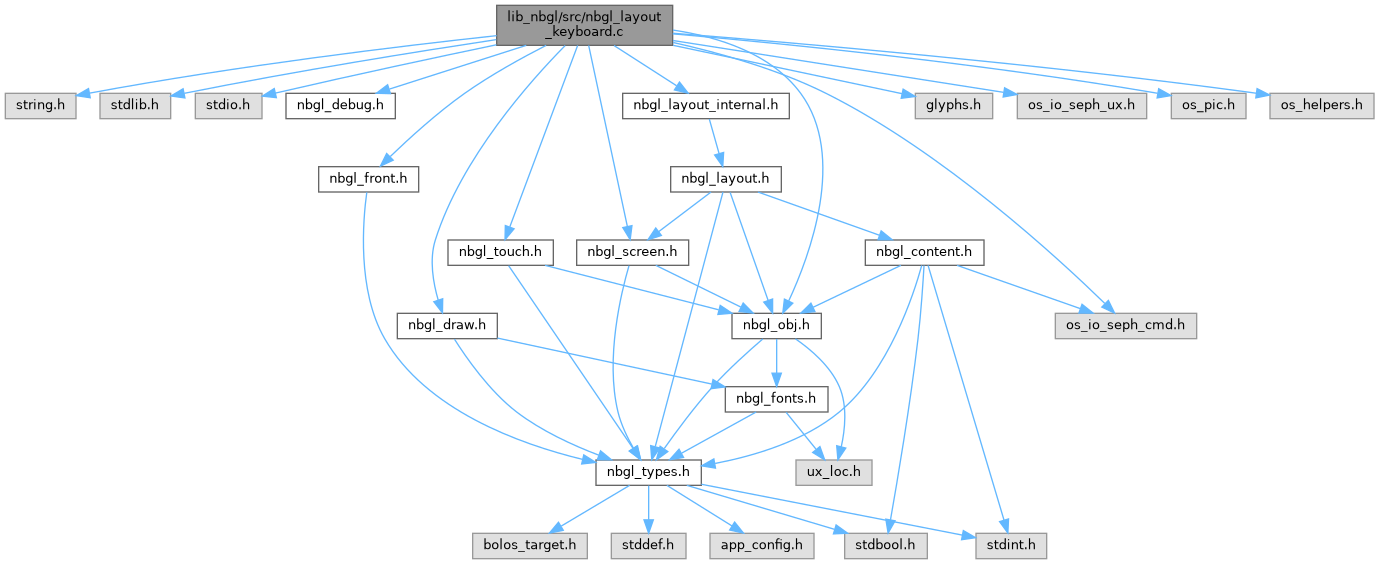

Include dependency graph for nbgl_layout_keyboard.c:

Go to the source code of this file.

Macros
#define	SUGGESTION_BUTTONS_SIDE_MARGIN BORDER_MARGIN

#define	LINE_THICKNESS 2

#define	LINE_COLOR LIGHT_GRAY

Enumerations
enum	{ PAGE_INDICATOR_INDEX = 0 , FIRST_BUTTON_INDEX , SECOND_BUTTON_INDEX , THIRD_BUTTON_INDEX , FOURTH_BUTTON_INDEX , NB_SUGGESTION_CHILDREN }

enum	{ NUMBER_INDEX = 0 , TEXT_INDEX , DELETE_INDEX , LINE_INDEX }

Functions
static bool	updateSuggestionButtons (nbgl_layoutInternal_t layoutInt, nbgl_container_t container, nbgl_touchType_t eventType, uint8_t currentLeftButtonIndex)

bool	keyboardSwipeCallback (nbgl_layoutInternal_t layoutInt, nbgl_obj_t obj, nbgl_touchType_t eventType)

static nbgl_container_t *	addTextEntry (nbgl_layoutInternal_t layoutInt, const char title, const char *text, bool numbered, uint8_t number, int textToken, bool compactMode, bool obfuscated)

static nbgl_container_t *	addSuggestionButtons (nbgl_layoutInternal_t layoutInt, uint8_t nbUsedButtons, const char *buttonTexts, int firstButtonToken, tune_index_e tuneId, bool obfuscated)

static nbgl_button_t *	addConfirmationButton (nbgl_layoutInternal_t layoutInt, bool active, const char text, int token, tune_index_e tuneId, bool compactMode)

int	nbgl_layoutAddKeyboard (nbgl_layout_t layout, const nbgl_layoutKbd_t kbdInfo)
	Creates a keyboard on bottom of the screen, with the given configuration.

int	nbgl_layoutUpdateKeyboard (nbgl_layout_t *layout, uint8_t index, uint32_t keyMask, bool updateCasing, keyboardCase_t casing)
	Updates an existing keyboard on bottom of the screen, with the given configuration.

bool	nbgl_layoutKeyboardNeedsRefresh (nbgl_layout_t *layout, uint8_t index)
	function called to know whether the keyboard has been redrawn and needs a refresh

int	nbgl_layoutAddKeyboardContent (nbgl_layout_t layout, nbgl_layoutKeyboardContent_t content)
	Adds an area containing a potential title, a text entry and either confirmation or suggestion buttons, on top of the keyboard.

int	nbgl_layoutUpdateKeyboardContent (nbgl_layout_t layout, nbgl_layoutKeyboardContent_t content)
	Updates an area containing a potential title, a text entry and either confirmation or suggestion buttons, on top of the keyboard This area must have been built with nbgl_layoutAddKeyboardContent, and the type must not change.

Variables
static const char *	choiceTexts [NB_MAX_SUGGESTION_BUTTONS]

static char	numText [5]

static uint8_t	nbActiveButtons

static uint8_t	currentFirstButtonToken

Detailed Description

Implementation of predefined keyboard related layouts management.

Note: This file applies only to wallet size products (Stax, Flex...)

Definition in file nbgl_layout_keyboard.c.

Macro Definition Documentation

◆ LINE_COLOR

#define LINE_COLOR LIGHT_GRAY

Definition at line 127 of file nbgl_layout_keyboard.c.

◆ LINE_THICKNESS

#define LINE_THICKNESS 2

Definition at line 126 of file nbgl_layout_keyboard.c.

◆ SUGGESTION_BUTTONS_SIDE_MARGIN

#define SUGGESTION_BUTTONS_SIDE_MARGIN BORDER_MARGIN

Definition at line 121 of file nbgl_layout_keyboard.c.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
PAGE_INDICATOR_INDEX
FIRST_BUTTON_INDEX
SECOND_BUTTON_INDEX
THIRD_BUTTON_INDEX
FOURTH_BUTTON_INDEX
NB_SUGGESTION_CHILDREN

Definition at line 36 of file nbgl_layout_keyboard.c.

◆ anonymous enum

anonymous enum

Enumerator
NUMBER_INDEX
TEXT_INDEX
DELETE_INDEX
LINE_INDEX

Definition at line 52 of file nbgl_layout_keyboard.c.

Function Documentation

◆ addConfirmationButton()

static nbgl_button_t * addConfirmationButton	(	nbgl_layoutInternal_t *	layoutInt,
		bool	active,
		const char *	text,
		int	token,
		tune_index_e	tuneId,
		bool	compactMode
	)

static

Definition at line 526 of file nbgl_layout_keyboard.c.

◆ addSuggestionButtons()

static nbgl_container_t * addSuggestionButtons	(	nbgl_layoutInternal_t *	layoutInt,
		uint8_t	nbUsedButtons,
		const char **	buttonTexts,
		int	firstButtonToken,
		tune_index_e	tuneId,
		bool	obfuscated
	)

static

Definition at line 438 of file nbgl_layout_keyboard.c.

◆ addTextEntry()

static nbgl_container_t * addTextEntry	(	nbgl_layoutInternal_t *	layoutInt,
		const char *	title,
		const char *	text,
		bool	numbered,
		uint8_t	number,
		int	textToken,
		bool	compactMode,
		bool	obfuscated
	)

static

Definition at line 316 of file nbgl_layout_keyboard.c.

◆ keyboardSwipeCallback()

bool keyboardSwipeCallback	(	nbgl_layoutInternal_t *	layoutInt,
		nbgl_obj_t *	obj,
		nbgl_touchType_t	eventType
	)

Definition at line 279 of file nbgl_layout_keyboard.c.

◆ nbgl_layoutAddKeyboard()

int nbgl_layoutAddKeyboard	(	nbgl_layout_t *	layout,
		const nbgl_layoutKbd_t *	kbdInfo
	)

Creates a keyboard on bottom of the screen, with the given configuration.

Parameters

layout	the current layout
kbdInfo	configuration of the keyboard to draw (including the callback when touched)

Returns: the index of keyboard, to use in nbgl_layoutUpdateKeyboard()

Definition at line 576 of file nbgl_layout_keyboard.c.

◆ nbgl_layoutAddKeyboardContent()

int nbgl_layoutAddKeyboardContent	(	nbgl_layout_t *	layout,
		nbgl_layoutKeyboardContent_t *	content
	)

Adds an area containing a potential title, a text entry and either confirmation or suggestion buttons, on top of the keyboard.

Parameters

layout	the current layout
content	structure containing the info

Returns: the height of the area if OK

Definition at line 720 of file nbgl_layout_keyboard.c.

◆ nbgl_layoutKeyboardNeedsRefresh()

bool nbgl_layoutKeyboardNeedsRefresh	(	nbgl_layout_t *	layout,
		uint8_t	index
	)

function called to know whether the keyboard has been redrawn and needs a refresh

Parameters

layout	the current layout
index	index returned by nbgl_layoutAddKeyboard() (unused)

Returns: true if keyboard needs a refresh

Definition at line 685 of file nbgl_layout_keyboard.c.

◆ nbgl_layoutUpdateKeyboard()

int nbgl_layoutUpdateKeyboard	(	nbgl_layout_t *	layout,
		uint8_t	index,
		uint32_t	keyMask,
		bool	updateCasing,
		keyboardCase_t	casing
	)

Updates an existing keyboard on bottom of the screen, with the given configuration.

Parameters

layout	the current layout
index	index returned by nbgl_layoutAddKeyboard() (unused)
keyMask	mask of keys to activate/deactivate on keyboard
updateCasing	if true, update keyboard casing with given value
casing	casing to use

Returns: >=0 if OK

Definition at line 646 of file nbgl_layout_keyboard.c.

◆ nbgl_layoutUpdateKeyboardContent()

int nbgl_layoutUpdateKeyboardContent	(	nbgl_layout_t *	layout,
		nbgl_layoutKeyboardContent_t *	content
	)

Updates an area containing a potential title, a text entry and either confirmation or suggestion buttons, on top of the keyboard This area must have been built with nbgl_layoutAddKeyboardContent, and the type must not change.

Parameters

layout	the current layout
content	structure containing the updated info

Returns: the height of the area if OK

Definition at line 810 of file nbgl_layout_keyboard.c.

◆ updateSuggestionButtons()

static bool updateSuggestionButtons	(	nbgl_layoutInternal_t *	layoutInt,
		nbgl_container_t *	container,
		nbgl_touchType_t	eventType,
		uint8_t	currentLeftButtonIndex
	)

static

Definition at line 156 of file nbgl_layout_keyboard.c.

Variable Documentation

◆ choiceTexts

const char* choiceTexts[NB_MAX_SUGGESTION_BUTTONS]

static

Definition at line 142 of file nbgl_layout_keyboard.c.

◆ currentFirstButtonToken

uint8_t currentFirstButtonToken

static

Definition at line 145 of file nbgl_layout_keyboard.c.

◆ nbActiveButtons

uint8_t nbActiveButtons

static

Definition at line 144 of file nbgl_layout_keyboard.c.

◆ numText

char numText[5]

static

Definition at line 143 of file nbgl_layout_keyboard.c.
