Embedded SDK
Embedded SDK
|
common content for Graphical Library More...

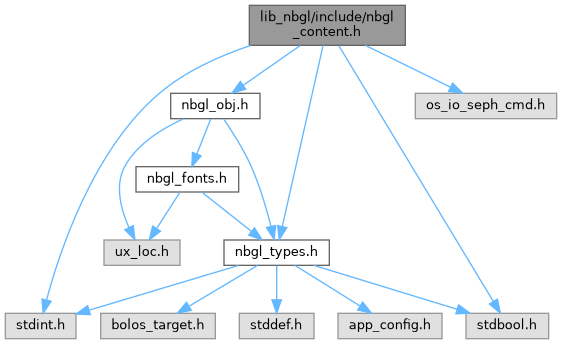

#include <stdint.h>#include <stdbool.h>#include "os_io_seph_cmd.h"#include "nbgl_types.h"#include "ux_loc.h"#include "nbgl_obj.h"

Go to the source code of this file.
Classes | |
| struct | nbgl_contentCenteredInfo_t |
| This structure contains info to build a centered (vertically and horizontally) area, with a possible Icon, a possible text under it, and a possible sub-text gray under it. More... | |
| struct | nbgl_contentCenter_t |
| This structure contains info to build a centered (vertically and horizontally) area, with many fields (if NULL, not used): More... | |
| struct | nbgl_contentInfoLongPress_t |
| This structure contains data to build a centered info + long press button content. More... | |
| struct | nbgl_contentInfoButton_t |
| This structure contains data to build a centered info + simple black button content. More... | |
| struct | nbgl_contentValueExt_t |
| This structure contains additions to a tag/value pair, to be able to build a screen to display these additions (for alias). More... | |
| struct | nbgl_contentTagValue_t |
| This structure contains a [tag,value] pair and possible extensions. More... | |
| struct | nbgl_contentTagValueList_s |
| This structure contains a list of [tag,value] pairs. More... | |
| struct | nbgl_contentTagValueDetails_t |
| This structure contains a [item,value] pair and info about "details" button. More... | |
| struct | nbgl_contentTagValueConfirm_t |
| This structure contains [item,value] pair(s) and info about a potential "details" button, but also a black button + footer to confirm/cancel. More... | |
| struct | nbgl_contentSwitch_t |
| This structure contains info to build a switch (on the right) with a description (on the left), with a potential sub-description (in gray). More... | |
| struct | nbgl_pageSwitchesList_s |
| This structure contains data to build a SWITCHES_LIST content. More... | |
| struct | nbgl_contentInfoList_s |
| This structure contains data to build a INFOS_LIST content. More... | |
| struct | nbgl_contentRadioChoice_t |
| This structure contains a list of names to build a list of radio buttons (on the right part of screen), with for each a description (names array) The chosen item index is provided is the "index" argument of the callback. More... | |
| struct | nbgl_contentBarsList_t |
| This structure contains data to build a BARS_LIST content. More... | |
| struct | nbgl_contentTipBox_t |
| This structure contains data to build a tip-box, on top of a footer, on bottom of a content center. More... | |
| struct | nbgl_contentExtendedCenter_t |
| This structure contains data to build a EXTENDED_CENTER content. More... | |
| union | nbgl_content_u |
| Union of the different type of contents. More... | |
| struct | nbgl_content_t |
| This structure contains data to build a content. More... | |
Typedefs | |
| typedef nbgl_contentTagValue_t *(* | nbgl_contentTagValueCallback_t) (uint8_t pairIndex) |
| prototype of tag/value pair retrieval callback | |
| typedef void(* | nbgl_contentActionCallback_t) (int token, uint8_t index, int page) |
| prototype of function to be called when an action on a content object occurs | |
| typedef struct nbgl_contentTagValueList_s | nbgl_contentTagValueList_t |
| This structure contains a list of [tag,value] pairs. | |
| typedef struct nbgl_pageSwitchesList_s | nbgl_contentSwitchesList_t |
| This structure contains data to build a SWITCHES_LIST content. | |
| typedef struct nbgl_contentInfoList_s | nbgl_contentInfoList_t |
| This structure contains data to build a INFOS_LIST content. | |
Enumerations | |
| enum | nbgl_contentCenteredInfoStyle_t { LARGE_CASE_INFO , LARGE_CASE_BOLD_INFO , LARGE_CASE_GRAY_INFO , NORMAL_INFO , PLUGIN_INFO } |
| possible styles for Centered Info Area More... | |
| enum | nbgl_contentIllustrationType_t { ICON_ILLUSTRATION , ANIM_ILLUSTRATION } |
| possible types of illustration, for example in nbgl_contentCenter_t More... | |
| enum | nbgl_contentValueAliasType_t { NO_ALIAS_TYPE = 0 , ENS_ALIAS , ADDRESS_BOOK_ALIAS , QR_CODE_ALIAS , INFO_LIST_ALIAS , TAG_VALUE_LIST_ALIAS } |
| possible types of value alias More... | |
| enum | nbgl_contentType_t { CENTERED_INFO = 0 , EXTENDED_CENTER , INFO_LONG_PRESS , INFO_BUTTON , TAG_VALUE_LIST , TAG_VALUE_DETAILS , TAG_VALUE_CONFIRM , SWITCHES_LIST , INFOS_LIST , CHOICES_LIST , BARS_LIST } |
| The different types of predefined contents. More... | |
common content for Graphical Library
Definition in file nbgl_content.h.
| typedef void(* nbgl_contentActionCallback_t) (int token, uint8_t index, int page) |
prototype of function to be called when an action on a content object occurs
| token | integer passed at content object initialization |
| index | when the object touched is a list of radio buttons, gives the index of the activated button. On touchscreen devices, this index is relative to the current page when the list is automatically split in several pages (see nbgl_contentRadioChoice_t) |
| page | index of the current page, can be used to restart the use_case directly at the right page |
Definition at line 232 of file nbgl_content.h.
| typedef struct nbgl_contentInfoList_s nbgl_contentInfoList_t |
This structure contains data to build a INFOS_LIST content.
| typedef struct nbgl_pageSwitchesList_s nbgl_contentSwitchesList_t |
This structure contains data to build a SWITCHES_LIST content.
| typedef nbgl_contentTagValue_t *(* nbgl_contentTagValueCallback_t) (uint8_t pairIndex) |
prototype of tag/value pair retrieval callback
| pairIndex | index of the tag/value pair to retrieve (from 0 (to nbPairs-1)) |
Definition at line 221 of file nbgl_content.h.
| typedef struct nbgl_contentTagValueList_s nbgl_contentTagValueList_t |
This structure contains a list of [tag,value] pairs.
possible styles for Centered Info Area
Definition at line 36 of file nbgl_content.h.
possible types of illustration, for example in nbgl_contentCenter_t
| Enumerator | |
|---|---|
| ICON_ILLUSTRATION | simple icon |
| ANIM_ILLUSTRATION | animation |
Definition at line 90 of file nbgl_content.h.
| enum nbgl_contentType_t |
The different types of predefined contents.
Definition at line 423 of file nbgl_content.h.
possible types of value alias
Definition at line 157 of file nbgl_content.h.
