cx_mldsa_sample.c File Reference

ML-DSA sampling operations (FIPS 204). More...

#include <string.h>
#include "cx_mldsa_sample.h"
#include "cx_mldsa_util.h"

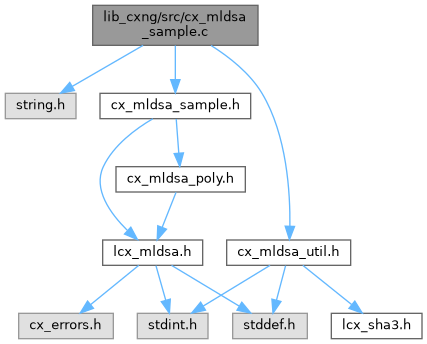

Include dependency graph for cx_mldsa_sample.c:

Go to the source code of this file.

Macros
#define	MLDSA_XOF_BLOCKBYTES   168U
#define	MLDSA_REJ_UNIFORM_NBLOCKS   5U
#define	MLDSA_REJ_UNIFORM_BUFLEN   (MLDSA_REJ_UNIFORM_NBLOCKS * MLDSA_XOF_BLOCKBYTES)

Functions
void	MLDSA_SAMPLE_uniform (mldsa_poly *a, const uint8_t seed[MLDSA_SEEDBYTES], uint16_t nonce)
	Sample polynomial with uniformly random coefficients in [0, q-1] by performing rejection sampling on output stream of SHAKE128.
void	MLDSA_SAMPLE_eta (mldsa_poly *a, const uint8_t seed[MLDSA_CRHBYTES], uint16_t nonce, uint8_t eta)
	Sample polynomial with coefficients in [-eta, eta] from SHAKE256(seed||nonce).
void	MLDSA_SAMPLE_gamma1 (mldsa_poly *a, const uint8_t seed[MLDSA_CRHBYTES], uint16_t nonce, int32_t gamma1)
	Sample polynomial with coefficients in [-(gamma1-1), gamma1] from SHAKE256(seed||nonce).
void	MLDSA_SAMPLE_challenge (mldsa_poly *c, const uint8_t *seed, size_t seedlen, uint8_t tau)
	Sample challenge polynomial with TAU coefficients in {-1, +1}.

Detailed Description

ML-DSA sampling operations (FIPS 204).

Implements rejection sampling for uniform, eta, gamma1, and challenge polynomial generation.

Definition in file cx_mldsa_sample.c.

Macro Definition Documentation

MLDSA_REJ_UNIFORM_BUFLEN

#define MLDSA_REJ_UNIFORM_BUFLEN   (MLDSA_REJ_UNIFORM_NBLOCKS * MLDSA_XOF_BLOCKBYTES)

Definition at line 36 of file cx_mldsa_sample.c.

MLDSA_REJ_UNIFORM_NBLOCKS

#define MLDSA_REJ_UNIFORM_NBLOCKS   5U

Definition at line 35 of file cx_mldsa_sample.c.

MLDSA_XOF_BLOCKBYTES

#define MLDSA_XOF_BLOCKBYTES   168U

Definition at line 29 of file cx_mldsa_sample.c.

Function Documentation

MLDSA_SAMPLE_challenge()

void MLDSA_SAMPLE_challenge	(	mldsa_poly *	c,
		const uint8_t *	seed,
		size_t	seedlen,
		uint8_t	tau
	)

Sample challenge polynomial with TAU coefficients in {-1, +1}.

Parameters

[out]	c	Output polynomial (TAU nonzero coefficients).
[in]	seed	Challenge hash of ctilde_bytes length.
[in]	seedlen	Length of seed.
[in]	tau	Number of nonzero coefficients.

Definition at line 201 of file cx_mldsa_sample.c.

MLDSA_SAMPLE_eta()

void MLDSA_SAMPLE_eta	(	mldsa_poly *	a,
		const uint8_t	seed[MLDSA_CRHBYTES],
		uint16_t	nonce,
		uint8_t	eta
	)

Sample polynomial with coefficients in [-eta, eta] from SHAKE256(seed||nonce).

Parameters

[out]	a	Output polynomial.
[in]	seed	Byte array with seed of MLDSA_CRHBYTES bytes.
[in]	nonce	Single-byte nonce.
[in]	eta	Range parameter (2 or 4).

Definition at line 67 of file cx_mldsa_sample.c.

MLDSA_SAMPLE_gamma1()

void MLDSA_SAMPLE_gamma1	(	mldsa_poly *	a,
		const uint8_t	seed[MLDSA_CRHBYTES],
		uint16_t	nonce,
		int32_t	gamma1
	)

Sample polynomial with coefficients in [-(gamma1-1), gamma1] from SHAKE256(seed||nonce).

Parameters

[out]	a	Output polynomial.
[in]	seed	Byte array with seed of MLDSA_CRHBYTES bytes.
[in]	nonce	16-bit nonce.
[in]	gamma1	Coefficient range parameter.

Definition at line 130 of file cx_mldsa_sample.c.

MLDSA_SAMPLE_uniform()

void MLDSA_SAMPLE_uniform	(	mldsa_poly *	a,
		const uint8_t	seed[MLDSA_SEEDBYTES],
		uint16_t	nonce
	)

Sample polynomial with uniformly random coefficients in [0, q-1] by performing rejection sampling on output stream of SHAKE128.

Parameters

[out]	a	Output polynomial.
[in]	seed	Byte array with seed of MLDSA_SEEDBYTES bytes.
[in]	nonce	Two-byte nonce.

Definition at line 38 of file cx_mldsa_sample.c.
