Internal functions/constants of NBGL layout layer. More...

#include "nbgl_layout.h"

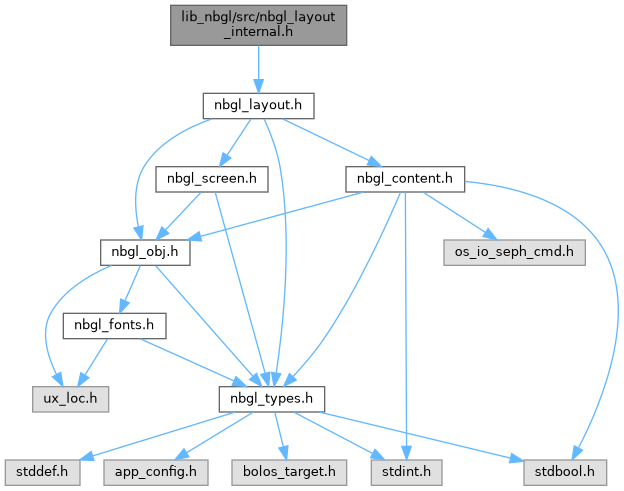

Include dependency graph for nbgl_layout_internal.h:

Classes
struct	layoutObj_t

struct	nbgl_layoutInternal_s
	Structure containing all information about the current layout. More...

Macros
#define	INTERNAL_MARGIN 8

#define	LAYOUT_OBJ_POOL_LEN 16
	Max number of complex objects with callback retrievable from pool.

#define	KEYBOARD_FOOTER_TYPE 99

#define	KEYPAD_FOOTER_TYPE 98

Typedefs
typedef struct nbgl_layoutInternal_s	nbgl_layoutInternal_t
	Structure containing all information about the current layout.

Enumerations
enum	nbgl_swipe_usage_t { SWIPE_USAGE_NAVIGATION , SWIPE_USAGE_CUSTOM , SWIPE_USAGE_SUGGESTIONS , NB_SWIPE_USAGE }

enum	{ HEADER_INDEX = 0 , MAIN_CONTAINER_INDEX , TOP_RIGHT_BUTTON_INDEX , FOOTER_INDEX , UP_FOOTER_INDEX , LEFT_BORDER_INDEX , NB_MAX_SCREEN_CHILDREN }

Functions
bool	keyboardSwipeCallback (nbgl_layoutInternal_t layoutInt, nbgl_obj_t obj, nbgl_touchType_t eventType)

void	layoutAddObject (nbgl_layoutInternal_t layout, nbgl_obj_t obj)
	adds the given obj to the layout

layoutObj_t *	layoutAddCallbackObj (nbgl_layoutInternal_t layout, nbgl_obj_t obj, uint8_t token, tune_index_e tuneId)

void	layoutUpdateCallbackObjToken (nbgl_layoutInternal_t layout, nbgl_obj_t obj, uint8_t token)

void	layoutNavigationPopulate (nbgl_container_t navContainer, const nbgl_layoutNavigationBar_t navConfig, uint8_t layer)

bool	layoutNavigationCallback (nbgl_obj_t obj, nbgl_touchType_t eventType, uint8_t nbPages, uint8_t activePage)

Detailed Description

Internal functions/constants of NBGL layout layer.

Definition in file nbgl_layout_internal.h.

Macro Definition Documentation

◆ INTERNAL_MARGIN

#define INTERNAL_MARGIN 8

Definition at line 24 of file nbgl_layout_internal.h.

◆ KEYBOARD_FOOTER_TYPE

#define KEYBOARD_FOOTER_TYPE 99

Definition at line 42 of file nbgl_layout_internal.h.

◆ KEYPAD_FOOTER_TYPE

#define KEYPAD_FOOTER_TYPE 98

Definition at line 43 of file nbgl_layout_internal.h.

◆ LAYOUT_OBJ_POOL_LEN

#define LAYOUT_OBJ_POOL_LEN 16

Max number of complex objects with callback retrievable from pool.

Definition at line 40 of file nbgl_layout_internal.h.

Typedef Documentation

◆ nbgl_layoutInternal_t

typedef struct nbgl_layoutInternal_s nbgl_layoutInternal_t

Structure containing all information about the current layout.

Note: It shall not be used externally

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
HEADER_INDEX
MAIN_CONTAINER_INDEX
TOP_RIGHT_BUTTON_INDEX
FOOTER_INDEX
UP_FOOTER_INDEX
LEFT_BORDER_INDEX
NB_MAX_SCREEN_CHILDREN

Definition at line 63 of file nbgl_layout_internal.h.

◆ nbgl_swipe_usage_t

enum nbgl_swipe_usage_t

Enumerator
SWIPE_USAGE_NAVIGATION
SWIPE_USAGE_CUSTOM
SWIPE_USAGE_SUGGESTIONS
NB_SWIPE_USAGE

Definition at line 55 of file nbgl_layout_internal.h.

Function Documentation

◆ keyboardSwipeCallback()

bool keyboardSwipeCallback	(	nbgl_layoutInternal_t *	layoutInt,
		nbgl_obj_t *	obj,
		nbgl_touchType_t	eventType
	)

◆ layoutAddCallbackObj()

layoutObj_t * layoutAddCallbackObj	(	nbgl_layoutInternal_t *	layout,
		nbgl_obj_t *	obj,
		uint8_t	token,
		tune_index_e	tuneId
	)

◆ layoutAddObject()

void layoutAddObject	(	nbgl_layoutInternal_t *	layout,
		nbgl_obj_t *	obj
	)

adds the given obj to the layout

Parameters

layout
obj

Definition at line 119 of file nbgl_layout_nanos.c.

◆ layoutNavigationCallback()

bool layoutNavigationCallback	(	nbgl_obj_t *	obj,
		nbgl_touchType_t	eventType,
		uint8_t	nbPages,
		uint8_t *	activePage
	)

◆ layoutNavigationPopulate()

void layoutNavigationPopulate	(	nbgl_container_t *	navContainer,
		const nbgl_layoutNavigationBar_t *	navConfig,
		uint8_t	layer
	)

◆ layoutUpdateCallbackObjToken()

void layoutUpdateCallbackObjToken	(	nbgl_layoutInternal_t *	layout,
		nbgl_obj_t *	obj,
		uint8_t	token
	)
