cx_mldsa_packing.h File Reference

#include "cx_mldsa_poly.h"
#include "lcx_mldsa.h"

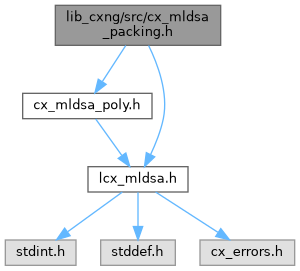

Include dependency graph for cx_mldsa_packing.h:

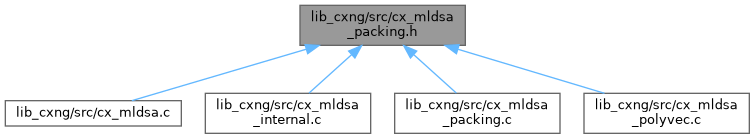

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	MLDSA_PACK_polyt1 (uint8_t r[MLDSA_POLYT1_PACKEDBYTES], const mldsa_poly *a)
	Bit-pack polynomial with coefficients a1 from power2round (10-bit values). Each coefficient uses 10 bits.
void	MLDSA_PACK_unpack_polyt1 (mldsa_poly *r, const uint8_t a[MLDSA_POLYT1_PACKEDBYTES])
	Unpack polynomial t1 from bytes.
void	MLDSA_PACK_polyt0 (uint8_t r[MLDSA_POLYT0_PACKEDBYTES], const mldsa_poly *a)
	Bit-pack polynomial with coefficients a0 from power2round. Coefficients in (-(2^{D-1}-1), 2^{D-1}], using 13 bits.
void	MLDSA_PACK_unpack_polyt0 (mldsa_poly *r, const uint8_t a[MLDSA_POLYT0_PACKEDBYTES])
	Unpack polynomial t0 from bytes.
uint32_t	MLDSA_PACK_polyeta (uint8_t *r, const mldsa_poly *a, uint8_t eta)
	Bit-pack polynomial with coefficients in [-eta, eta].
uint32_t	MLDSA_PACK_unpack_polyeta (mldsa_poly *r, const uint8_t *a, uint8_t eta)
	Unpack polynomial with coefficients in [-eta, eta].
uint32_t	MLDSA_PACK_polyz (uint8_t *r, const mldsa_poly *a, int32_t gamma1)
	Bit-pack polynomial z with coefficients in [-(gamma1-1), gamma1].
uint32_t	MLDSA_PACK_unpack_polyz (mldsa_poly *r, const uint8_t *a, int32_t gamma1)
	Unpack polynomial z.
uint32_t	MLDSA_PACK_polyw1 (uint8_t *r, const mldsa_poly *a, int32_t gamma2)
	Bit-pack polynomial w1 with coefficients fitting in ceil(log2((q-1)/(2*gamma2))) bits.
void	MLDSA_PACK_pk (uint8_t *pk, const uint8_t rho[MLDSA_SEEDBYTES], const mldsa_poly *t1, const MLDSA_param_info_t *p)
	Pack the public key (rho || t1).
void	MLDSA_PACK_unpack_pk (uint8_t rho[MLDSA_SEEDBYTES], mldsa_poly *t1, const uint8_t *pk, const MLDSA_param_info_t *p)
	Unpack the public key.
void	MLDSA_PACK_sk (uint8_t *sk, const uint8_t rho[MLDSA_SEEDBYTES], const uint8_t K[MLDSA_SEEDBYTES], const uint8_t tr[MLDSA_TRBYTES], const mldsa_poly *s1, const mldsa_poly *s2, const mldsa_poly *t0, const MLDSA_param_info_t *p)
	Pack the secret key (rho || K || tr || s1 || s2 || t0).
void	MLDSA_PACK_unpack_sk (uint8_t rho[MLDSA_SEEDBYTES], uint8_t K[MLDSA_SEEDBYTES], uint8_t tr[MLDSA_TRBYTES], mldsa_poly *s1, mldsa_poly *s2, mldsa_poly *t0, const uint8_t *sk, const MLDSA_param_info_t *p)
	Unpack the secret key.
void	MLDSA_PACK_sig (uint8_t *sig, const uint8_t *ctilde, const mldsa_poly *z, const mldsa_poly *h, const MLDSA_param_info_t *p)
	Pack signature (c_tilde || z || h).
int	MLDSA_PACK_unpack_sig (uint8_t *ctilde, mldsa_poly *z, mldsa_poly *h, const uint8_t *sig, const MLDSA_param_info_t *p)
	Unpack signature.

Function Documentation

MLDSA_PACK_pk()

void MLDSA_PACK_pk	(	uint8_t *	pk,
		const uint8_t	rho[MLDSA_SEEDBYTES],
		const mldsa_poly *	t1,
		const MLDSA_param_info_t *	p
	)

Pack the public key (rho || t1).

Parameters

[out]	pk	Output byte array.
[in]	rho	Seed of MLDSA_SEEDBYTES bytes.
[in]	t1	Array of k polynomials.
[in]	p	Parameter info.

Definition at line 321 of file cx_mldsa_packing.c.

MLDSA_PACK_polyeta()

uint32_t MLDSA_PACK_polyeta	(	uint8_t *	r,
		const mldsa_poly *	a,
		uint8_t	eta
	)

Bit-pack polynomial with coefficients in [-eta, eta].

Parameters

[out]	r	Output byte array.
[in]	a	Input polynomial.
[in]	eta	Range parameter (2 or 4).

Returns

Number of bytes written.

Definition at line 140 of file cx_mldsa_packing.c.

MLDSA_PACK_polyt0()

void MLDSA_PACK_polyt0	(	uint8_t	r[MLDSA_POLYT0_PACKEDBYTES],
		const mldsa_poly *	a
	)

Bit-pack polynomial with coefficients a0 from power2round. Coefficients in (-(2^{D-1}-1), 2^{D-1}], using 13 bits.

Parameters

[out]	r	Output byte array (MLDSA_POLYT0_PACKEDBYTES bytes).
[in]	a	Input polynomial.

Definition at line 58 of file cx_mldsa_packing.c.

MLDSA_PACK_polyt1()

void MLDSA_PACK_polyt1	(	uint8_t	r[MLDSA_POLYT1_PACKEDBYTES],
		const mldsa_poly *	a
	)

Bit-pack polynomial with coefficients a1 from power2round (10-bit values). Each coefficient uses 10 bits.

Parameters

[out]	r	Output byte array (MLDSA_POLYT1_PACKEDBYTES bytes).
[in]	a	Input polynomial.

Definition at line 27 of file cx_mldsa_packing.c.

MLDSA_PACK_polyw1()

uint32_t MLDSA_PACK_polyw1	(	uint8_t *	r,
		const mldsa_poly *	a,
		int32_t	gamma2
	)

Bit-pack polynomial w1 with coefficients fitting in ceil(log2((q-1)/(2*gamma2))) bits.

Parameters

[out]	r	Output byte array.
[in]	a	Input polynomial.
[in]	gamma2	Low-order rounding range.

Returns

Number of bytes written.

Definition at line 296 of file cx_mldsa_packing.c.

MLDSA_PACK_polyz()

uint32_t MLDSA_PACK_polyz	(	uint8_t *	r,
		const mldsa_poly *	a,
		int32_t	gamma1
	)

Bit-pack polynomial z with coefficients in [-(gamma1-1), gamma1].

Parameters

[out]	r	Output byte array.
[in]	a	Input polynomial.
[in]	gamma1	Coefficient range.

Returns

Number of bytes written.

Definition at line 207 of file cx_mldsa_packing.c.

MLDSA_PACK_sig()

void MLDSA_PACK_sig	(	uint8_t *	sig,
		const uint8_t *	ctilde,
		const mldsa_poly *	z,
		const mldsa_poly *	h,
		const MLDSA_param_info_t *	p
	)

Pack signature (c_tilde || z || h).

Parameters

[out]	sig	Signature output.
[in]	ctilde	Challenge hash.
[in]	z	Array of l polynomials.
[in]	h	Array of k polynomials (hint).
[in]	p	Parameter info.

Definition at line 418 of file cx_mldsa_packing.c.

MLDSA_PACK_sk()

void MLDSA_PACK_sk	(	uint8_t *	sk,
		const uint8_t	rho[MLDSA_SEEDBYTES],
		const uint8_t	K[MLDSA_SEEDBYTES],
		const uint8_t	tr[MLDSA_TRBYTES],
		const mldsa_poly *	s1,
		const mldsa_poly *	s2,
		const mldsa_poly *	t0,
		const MLDSA_param_info_t *	p
	)

Pack the secret key (rho || K || tr || s1 || s2 || t0).

Parameters

[out]	sk	Output byte array.
[in]	rho	Seed of MLDSA_SEEDBYTES bytes.
[in]	K	Key seed of MLDSA_SEEDBYTES bytes.
[in]	tr	Hash of MLDSA_TRBYTES bytes.
[in]	s1	Array of l polynomials.
[in]	s2	Array of k polynomials.
[in]	t0	Array of k polynomials.
[in]	p	Parameter info.

Definition at line 343 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_pk()

void MLDSA_PACK_unpack_pk	(	uint8_t	rho[MLDSA_SEEDBYTES],
		mldsa_poly *	t1,
		const uint8_t *	pk,
		const MLDSA_param_info_t *	p
	)

Unpack the public key.

Parameters

[out]	rho	Seed output.
[out]	t1	Array of k polynomials output.
[in]	pk	Packed public key.
[in]	p	Parameter info.

Definition at line 332 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_polyeta()

uint32_t MLDSA_PACK_unpack_polyeta	(	mldsa_poly *	r,
		const uint8_t *	a,
		uint8_t	eta
	)

Unpack polynomial with coefficients in [-eta, eta].

Parameters

[out]	r	Output polynomial.
[in]	a	Input byte array.
[in]	eta	Range parameter (2 or 4).

Returns

Number of bytes consumed.

Definition at line 167 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_polyt0()

void MLDSA_PACK_unpack_polyt0	(	mldsa_poly *	r,
		const uint8_t	a[MLDSA_POLYT0_PACKEDBYTES]
	)

Unpack polynomial t0 from bytes.

Parameters

[out]	r	Output polynomial.
[in]	a	Input byte array.

Definition at line 94 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_polyt1()

void MLDSA_PACK_unpack_polyt1	(	mldsa_poly *	r,
		const uint8_t	a[MLDSA_POLYT1_PACKEDBYTES]
	)

Unpack polynomial t1 from bytes.

Parameters

[out]	r	Output polynomial.
[in]	a	Input byte array.

Definition at line 41 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_polyz()

uint32_t MLDSA_PACK_unpack_polyz	(	mldsa_poly *	r,
		const uint8_t *	a,
		int32_t	gamma1
	)

Unpack polynomial z.

Parameters

[out]	r	Output polynomial.
[in]	a	Input byte array.
[in]	gamma1	Coefficient range.

Returns

Number of bytes consumed.

Definition at line 247 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_sig()

int MLDSA_PACK_unpack_sig	(	uint8_t *	ctilde,
		mldsa_poly *	z,
		mldsa_poly *	h,
		const uint8_t *	sig,
		const MLDSA_param_info_t *	p
	)

Unpack signature.

Parameters

[out]	ctilde	Challenge hash output.
[out]	z	Array of l polynomials output.
[out]	h	Array of k polynomials (hint) output.
[in]	sig	Packed signature.
[in]	p	Parameter info.

Returns

0 on success, 1 if hint encoding is invalid.

Definition at line 451 of file cx_mldsa_packing.c.

MLDSA_PACK_unpack_sk()

void MLDSA_PACK_unpack_sk	(	uint8_t	rho[MLDSA_SEEDBYTES],
		uint8_t	K[MLDSA_SEEDBYTES],
		uint8_t	tr[MLDSA_TRBYTES],
		mldsa_poly *	s1,
		mldsa_poly *	s2,
		mldsa_poly *	t0,
		const uint8_t *	sk,
		const MLDSA_param_info_t *	p
	)

Unpack the secret key.

Parameters

[out]	rho	Seed output.
[out]	K	Key seed output.
[out]	tr	Hash output.
[out]	s1	Array of l polynomials output.
[out]	s2	Array of k polynomials output.
[out]	t0	Array of k polynomials output.
[in]	sk	Packed secret key.
[in]	p	Parameter info.

Definition at line 379 of file cx_mldsa_packing.c.
